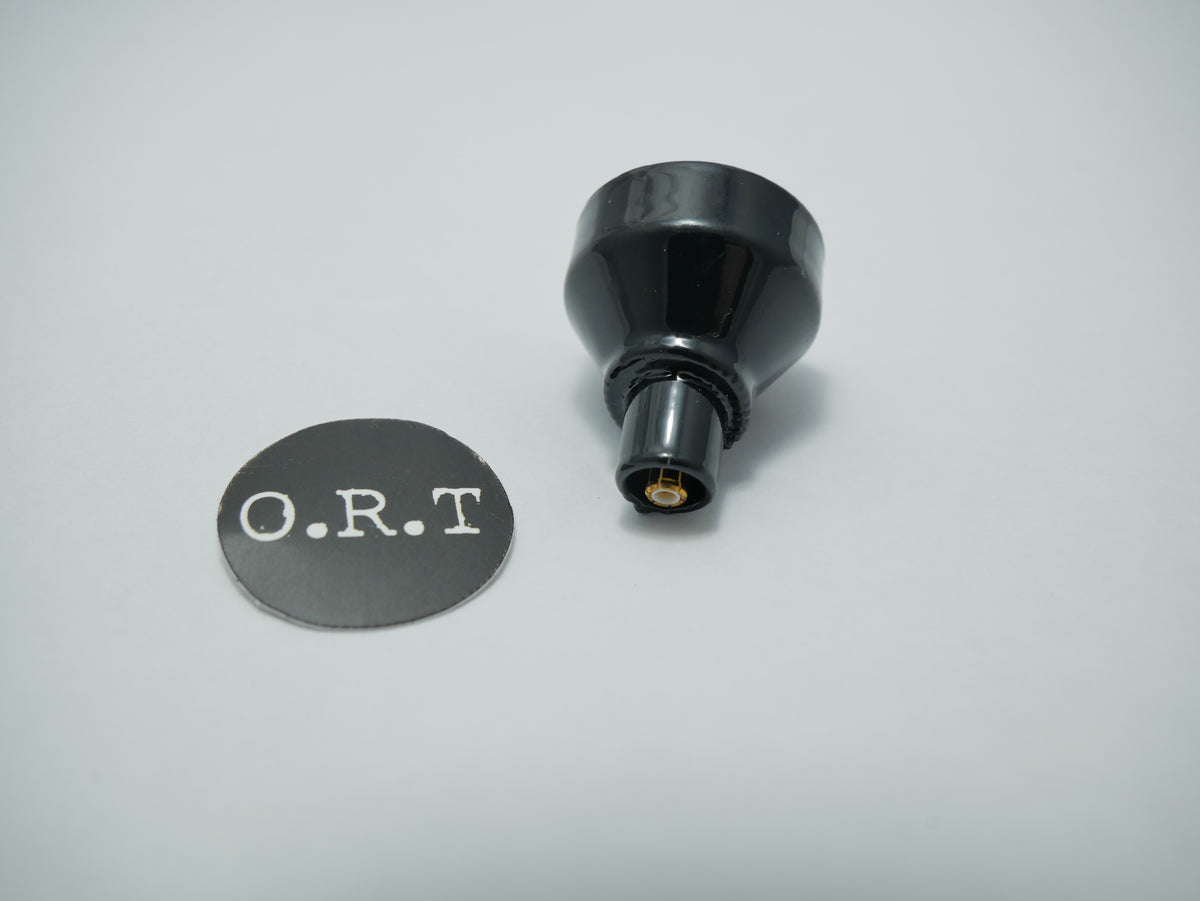

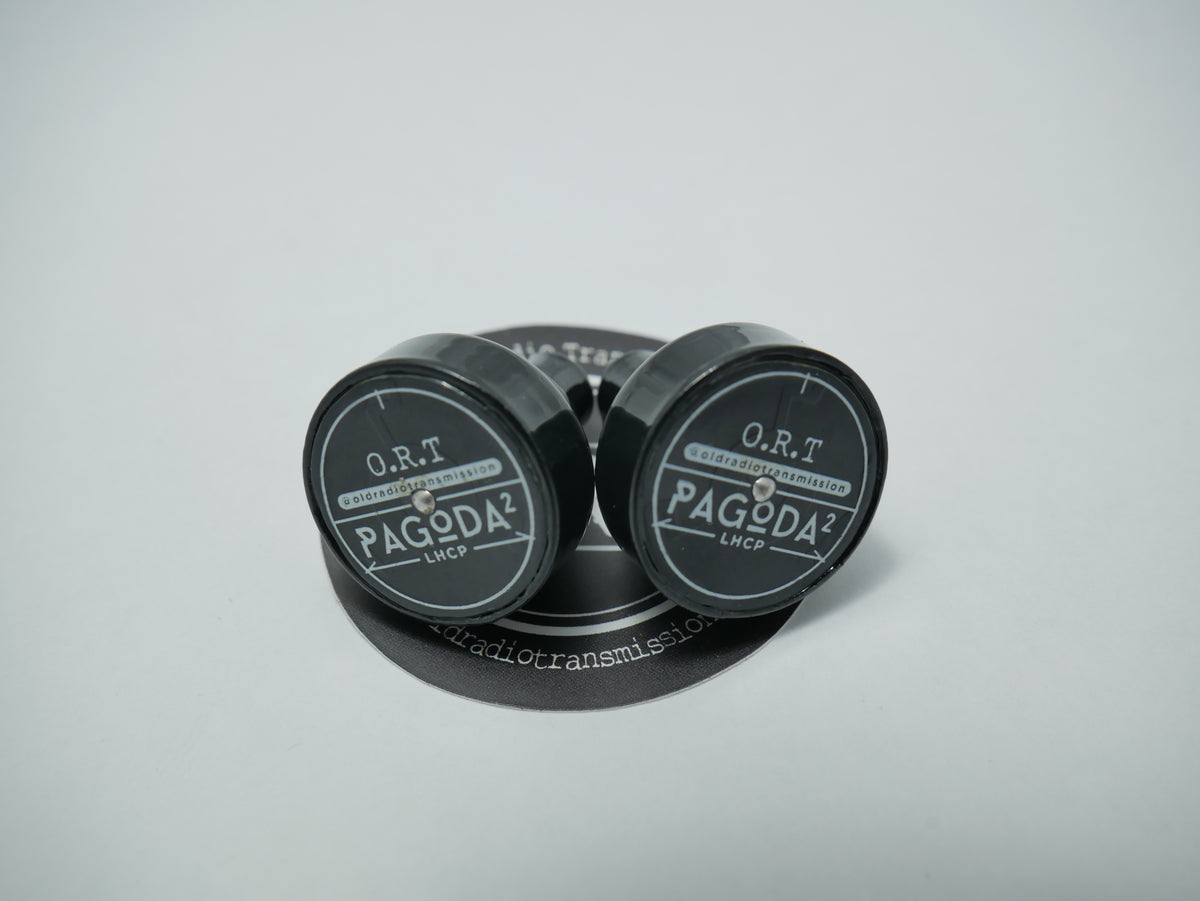

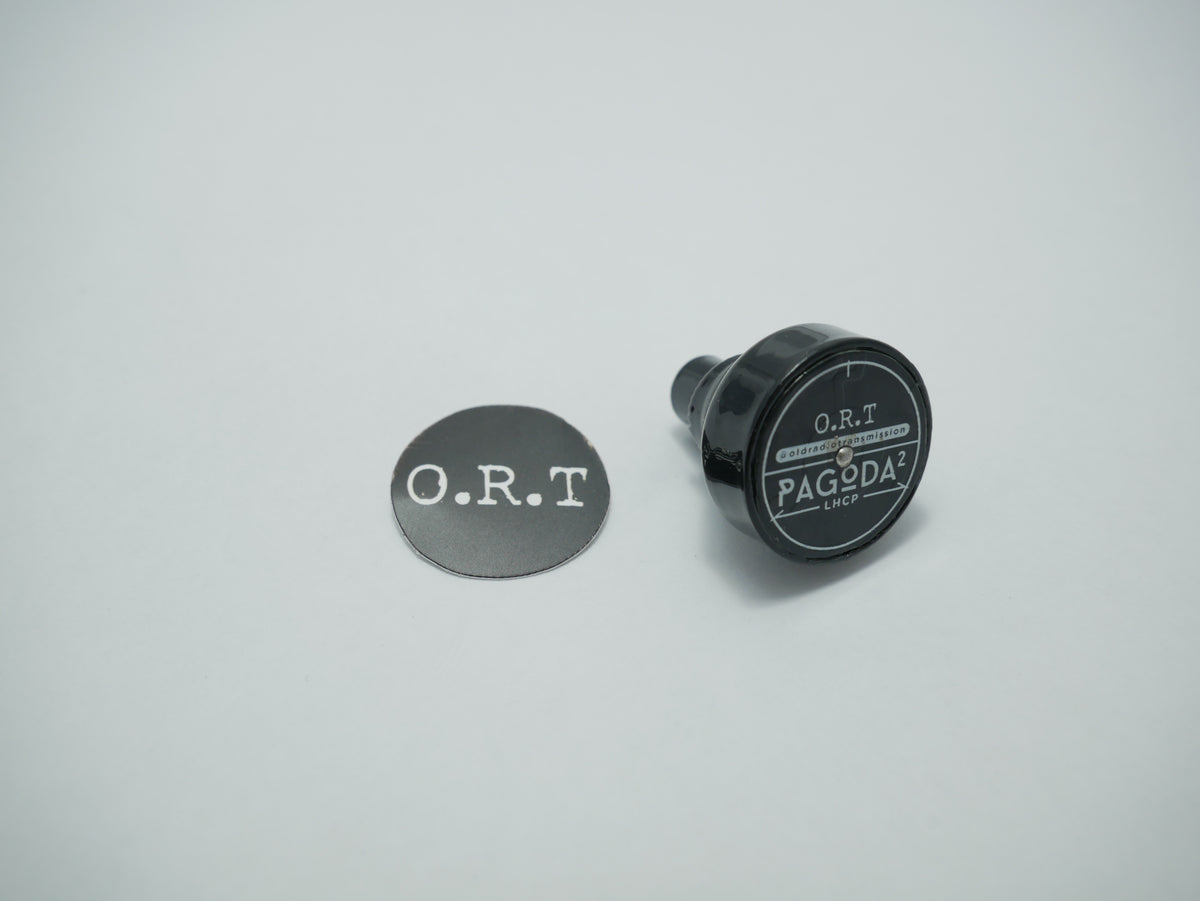

ORT Pagoda Stubby 5.8GHz LHCP Antenna – DJI Goggles 2 Upgrade (2-Pack)

If you're flying DJI Goggles 2 on the stock antennas, you're leaving signal on the table. The ORT Pagoda Stubby is one of the most trusted aftermarket antenna upgrades in the FPV community — and this version is built specifically for the DJI Goggles 2's MCX connector ports. Tested to deliver 30–40% better signal and higher bitrate (Mbps) compared to the default DJI antennas, with a compact stubby profile that doesn't add bulk or snag on your gear bag.

The Pagoda design is a well-established, high-efficiency circular antenna that provides clean omnidirectional coverage with excellent axial ratio — meaning consistent signal in every direction without the dead spots you get from basic linear dipole antennas. LHCP polarization matches DJI's default system exactly, so there's no polarization mismatch loss.

• Gain: 1.2dBi circular | Axial Ratio: <1.33 (2.5dB)
• Efficiency: 95%
• Polarization: LHCP (matches DJI default)
• Pattern: Omnidirectional 360°
• Connector: MCX (DJI Goggles 2 compatible)

Includes 2× ORT Pagoda Stubby antennas — a direct replacement set for both goggle ports.

Common Questions

Are these the best antennas for DJI Goggles 2?
The ORT Pagoda Stubby is one of the most recommended aftermarket omni antenna upgrades for DJI digital FPV systems. For pure omnidirectional flying — racing, proximity freestyle, and general flying — the Pagoda design offers a meaningful improvement over the stock DJI antennas in both signal strength and bitrate consistency.

Will these fit DJI Goggles 2?
Yes — this version uses an MCX connector, which is the correct connector for the DJI Goggles 2. Note that older DJI FPV Goggles use different connectors and are not compatible with this version.

Why LHCP and not RHCP?
DJI's digital FPV system uses Left-Hand Circular Polarization (LHCP). Using an RHCP antenna with an LHCP system causes a significant signal loss — matching polarization is essential for best performance. These antennas are specifically LHCP to match DJI's system.

How many antennas do I need?
The DJI Goggles 2 has two antenna ports. This 2-pack replaces both stock antennas in one purchase — no extras needed.

What's the difference between the Pagoda Stubby and a standard Pagoda?
The Stubby is a compact, shorter-length version of the classic Pagoda design. It maintains the same performance characteristics and polarization purity but in a lower-profile form factor that's better suited for goggles where a full-size Pagoda would be cumbersome.
