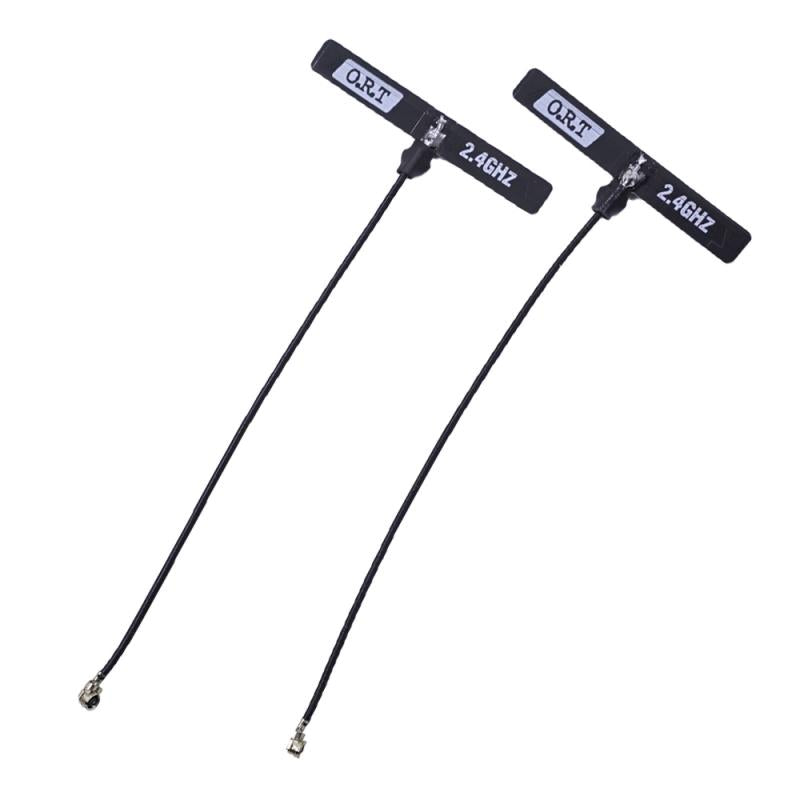

O.R.T. D-Pole 2.4GHz RX Antenna – U.FL Linear Dipole (2-Pack)

The O.R.T. D-Pole is a drop-in antenna upgrade for your 2.4GHz RC receiver — designed to replace the flimsy wire antennas that come stock on most ELRS and Crossfire receivers. The refined dipole geometry significantly reduces null zones compared to a basic straight wire dipole, giving you more consistent signal coverage across all orientations of your quad in the air.

At just 0.8g each with a compact 4cm antenna element and 10cm of flexible 1.13mm coax, these tuck cleanly into any build without getting in the way of props or structure. The U.FL/IPEX1 connector is standard on virtually all modern 2.4GHz receivers. Comes as a 2-pack — exactly what you need for diversity ELRS receivers with dual antenna ports.

• Frequency: 2350–2500MHz (full 2.4GHz band — ELRS, Crossfire compatible)
• Gain: 3dBi | Polarization: Linear | Pattern: Omnidirectional
• SWR: <1:1.4 | Cable: 10cm, 1.13mm flexible coax
• Antenna width: 4cm | Weight: 0.8g each
• Connector: U.FL / IPEX1

Includes 2× O.R.T. D-Pole 2.4GHz antennas.

Common Questions

What receivers is this compatible with?
Any 2.4GHz receiver with U.FL antenna ports — including ELRS receivers (EP1, EP2, and most others) and TBS Crossfire Nano receivers. If your receiver has U.FL connectors, these will fit.

Why two antennas?
Most modern 2.4GHz receivers use diversity — two antennas mounted at different angles to eliminate dead spots. The D-Pole comes as a 2-pack so you have everything you need for a full diversity install in one purchase. (Note: This only works for the same frequency [2.4GHz] diversity, so gemini is a no go)

How should I position them?
Mount the two antennas at roughly 90° to each other for maximum diversity coverage — one pointing down, one pointing to the side is a common and effective setup.
