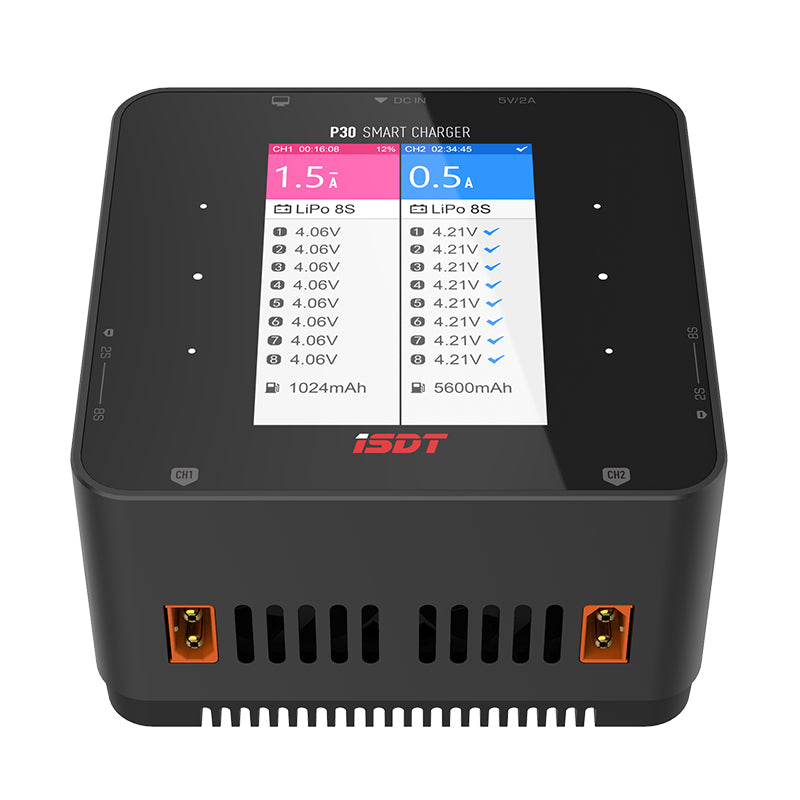

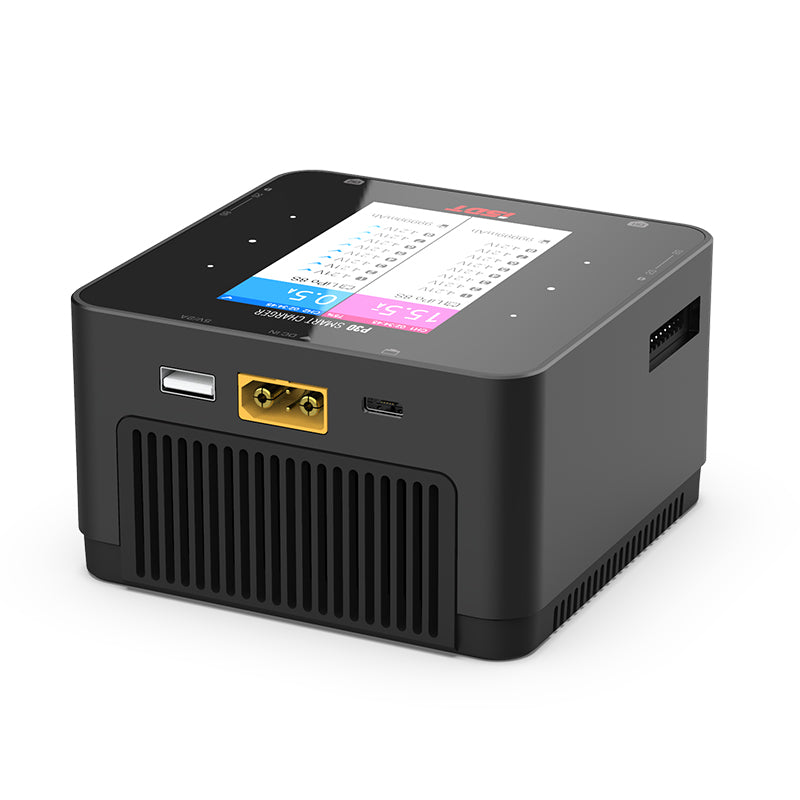

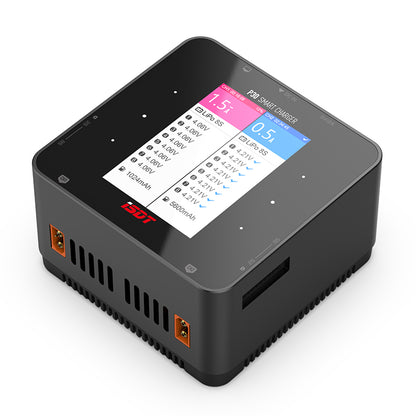

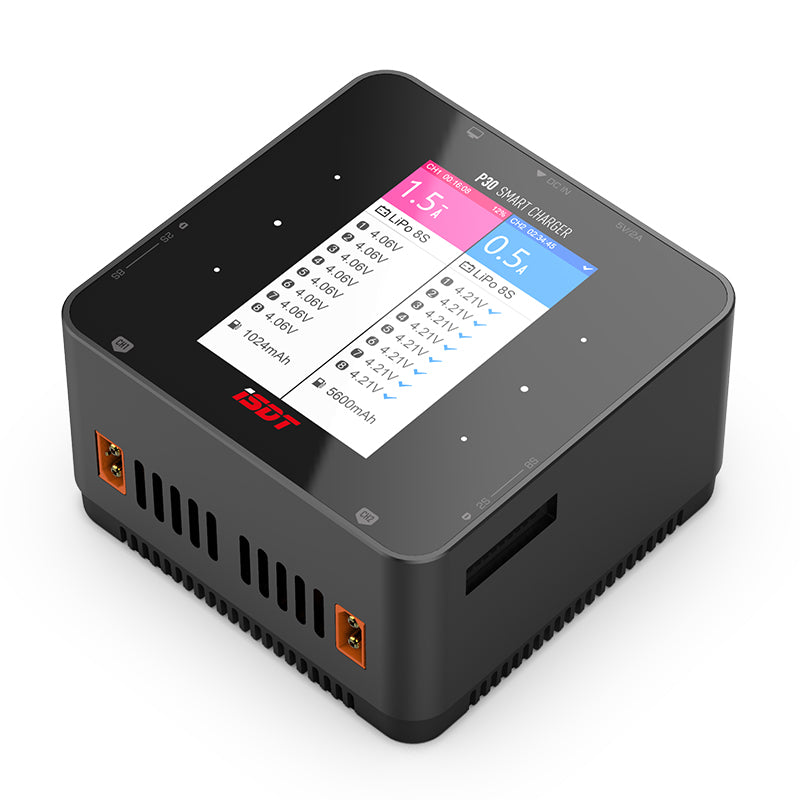

ISDT P30 Dual Channel Smart Charger

The ISDT P30 is a powerhouse dual-channel smart charger built for serious FPV pilots and professionals. With up to 1000 W per port and 1500 W total output, it brings incredible speed and flexibility for charging multiple high-capacity packs simultaneously.

Equipped with dual intelligent processors, a 3.5-inch IPS display, and Bluetooth connectivity via the ISD GO App, the P30 combines performance with precision. Whether you’re charging 6S race packs or large-scale LiPos, this charger delivers unmatched reliability, efficiency, and insight into every cell.

✨ Features

✅ Synchronous Dual-Channel Power
Two independent channels with intelligent power allocation. Each port can output up to 1000 W, with a combined 1500 W max in parallel mode.

✅ Smart Parallel Charging
Built-in high-speed processor synchronizes both channels for perfectly balanced dual or parallel charging (30 A – 50 A).

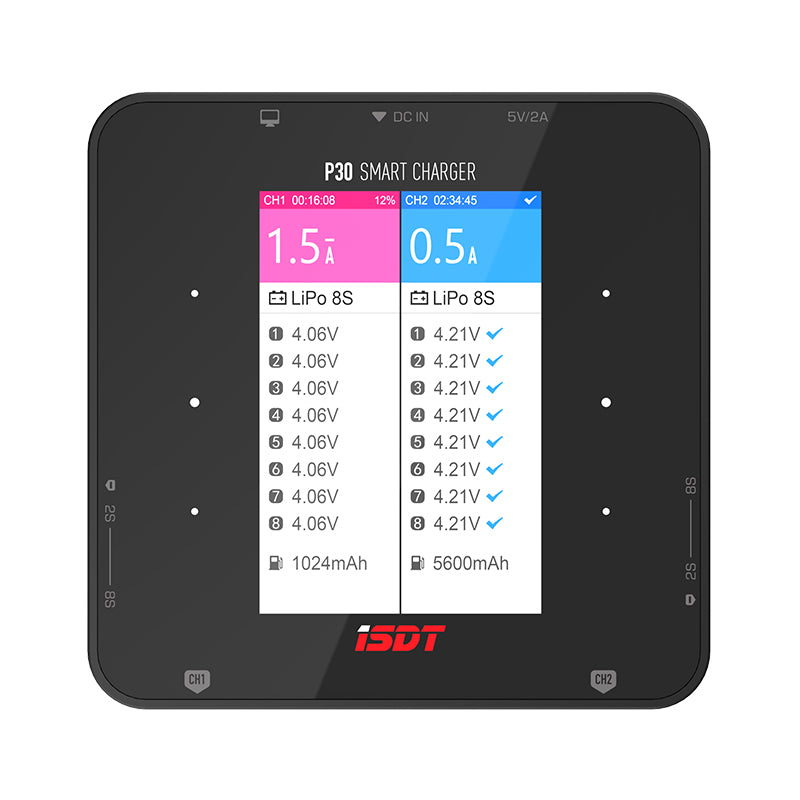

✅ Large 3.5” IPS LCD Display
Crisp 320 × 480 resolution provides detailed information — voltage, power, capacity, and internal resistance — all visible at a glance.

✅ Advanced Cooling System
Redesigned convection air duct efficiently channels airflow for powerful heat dissipation and quieter operation.

✅ Bluetooth Remote Control
Connect via the ISD GO App to monitor, update firmware, and create preset charging tasks — full control from your phone.

✅ Broad Battery Compatibility
Supports LiFe, Li-Ion, LiPo (1-8 S), LiHV (1-7 S), Pb (1-12 S), and NiMH/Cd (1-16 S) packs.

⚙️ Specifications

• Input Voltage: DC 10 – 34 V
• Output Voltage: DC 1 – 34 V
• Max Input Current: 60 A
• Charging Current: 0.2 – 30 A × 2
• Discharge Current: 0.2 – 3.0 A × 2
• Balance Current: 1.5 A / cell (max)
• Max Charge Power: 1000 W × 1 / 1500 W (total)
• Max Discharge Power: 30 W × 2
• Connectors: Input – XT90i (compatible with XT90) | Output – XT60i (compatible with XT60)
• Display: 3.5 inch IPS LCD (320 × 480)
• Operating Temp: 0 – 40 °C
• Storage Temp: –20 – 60 °C
• Dimensions: 110 × 110 × 65 mm
• Weight: 730 g

📦 Package Includes

• 1 × ISDT P30 Dual Channel Smart Charger
• 1 × User Manual
