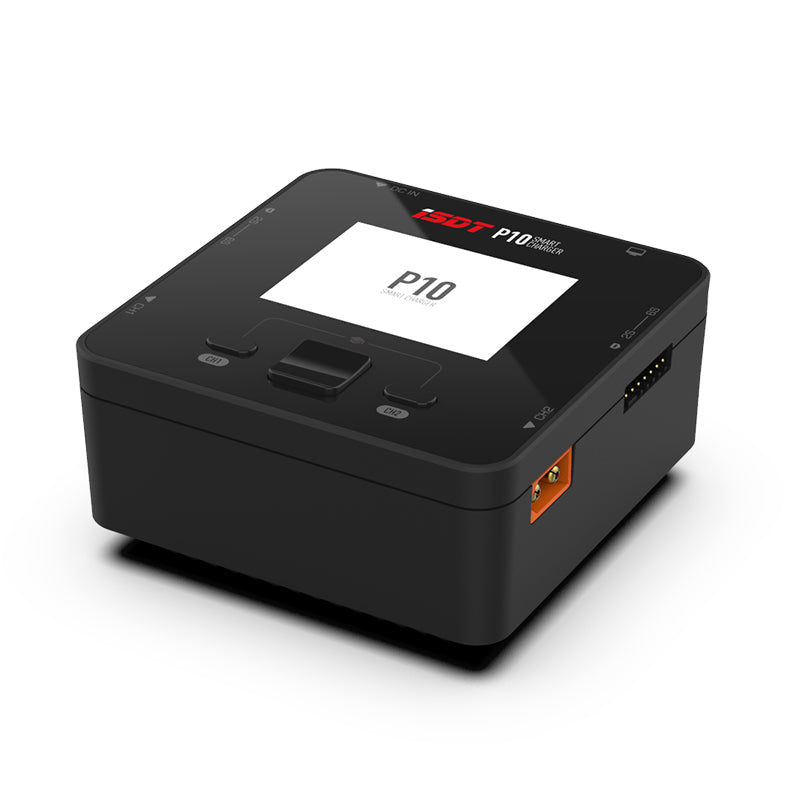

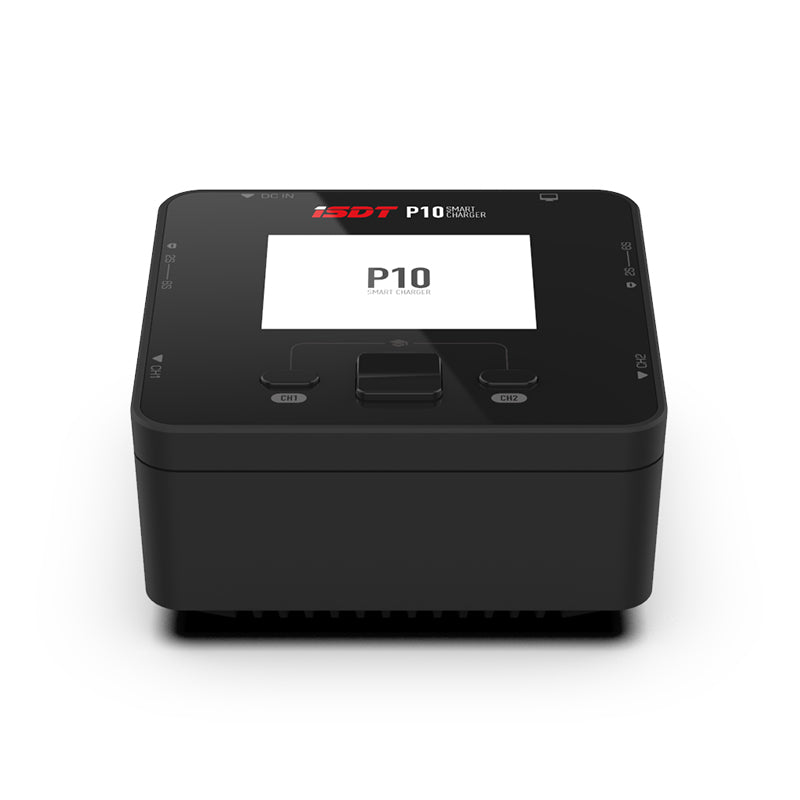

ISDT P10 Dual Channel Smart Charger

The ISDT P10 is a compact dual-channel smart charger designed for FPV pilots and RC enthusiasts who need powerful, efficient, and synchronized charging in a portable form. Delivering up to 250 W per port (400 W total), the P10 combines high performance with advanced intelligent control, ensuring safe, accurate charging for every pack.

Its bright 2.4-inch IPS LCD screen displays all essential data clearly, while the integrated USB-C port allows quick firmware updates to keep the charger future-ready. With its refined airflow cooling system and ISDT’s signature parallel balance technology, the P10 packs professional-grade capability into a field-sized charger.

✨ Features

✅ High-Performance Dual-Channel Output
Two intelligent charging ports deliver up to 250 W each (or 400 W combined), supporting independent or parallel operation.

✅ Smart Parallel Charging
Advanced high-speed processors manage voltage balance across both channels for efficient, synchronized charging up to 16 A total.

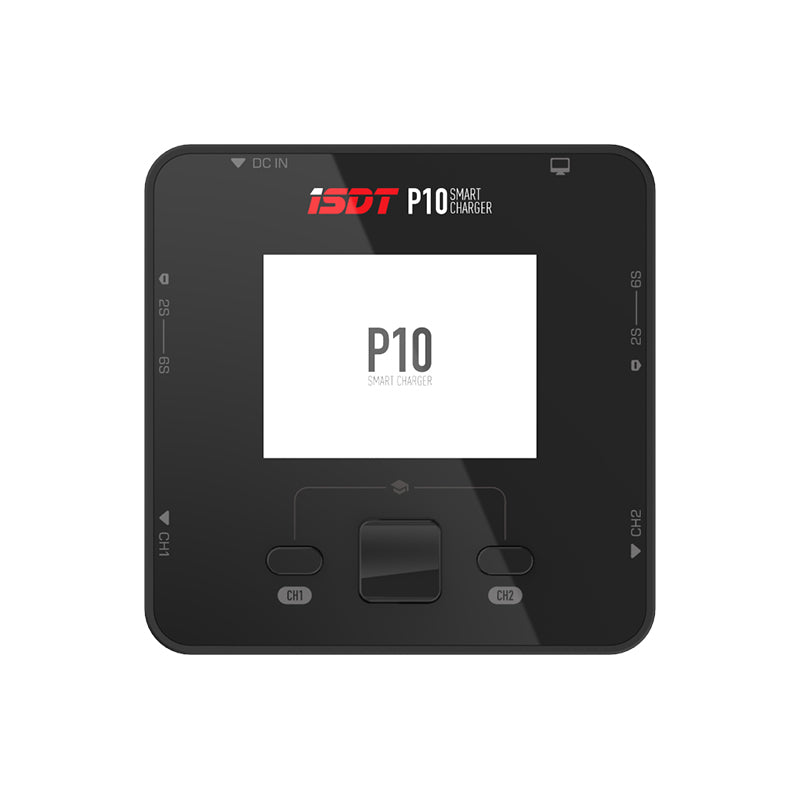

✅ 2.4” Super IPS LCD Display
Crisp, full-color screen displays voltage, current, capacity, and internal resistance in real time — even under sunlight.

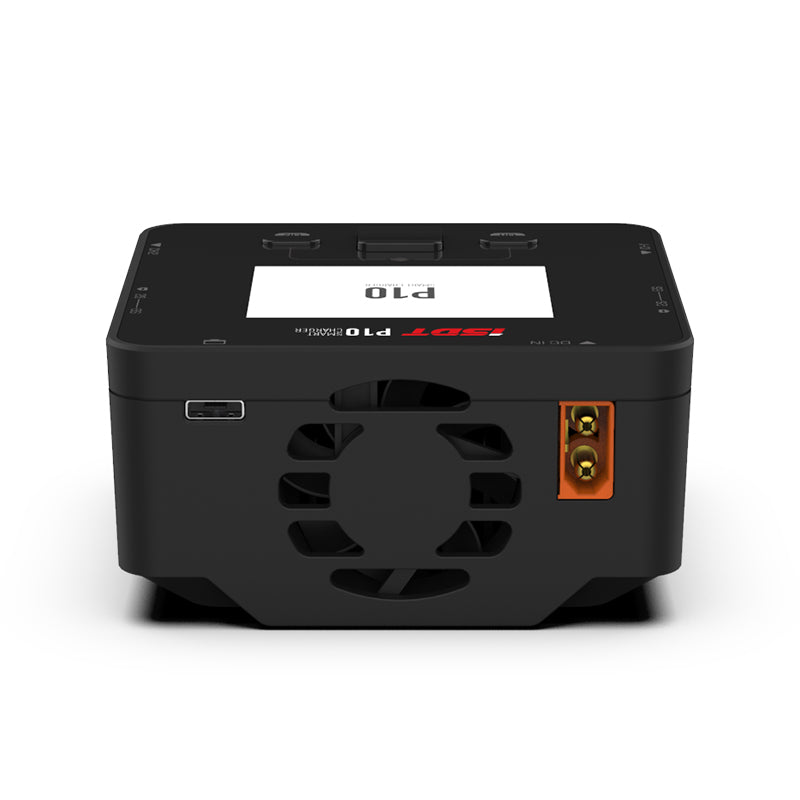

✅ Refined Heat Dissipation System
New convection-style air duct reduces exhaust loss and increases cooling efficiency for consistent high-power charging.

✅ Firmware Upgradable via USB-C
Easily connect to a PC and update to the latest ISDT firmware, ensuring top performance and compatibility.

✅ Universal Battery Compatibility
Supports a wide range of chemistries — LiFe, Li-Ion, LiPo, LiHV (1–6S), Pb (1–10S), and NiMH/Cd (1–16S).

⚙️ Specifications

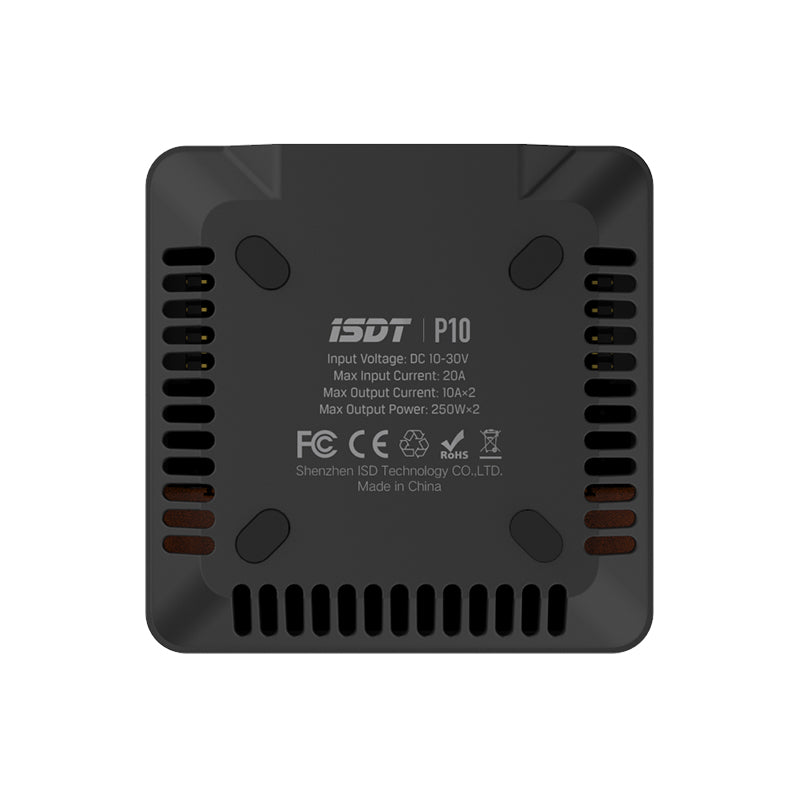

• Input Voltage: DC 10 – 30 V
• Output Voltage: DC 1 – 26.4 V
• Max Input Current: 20 – 35 A
• Charging Current: 0.2 – 10 A × 2
• Max Charging Power: 250 W × 2 (400 W total)
• Balance Current: 0.5 A / cell (max)
• Supported Battery Types: LiFe, LiIon, LiPo, LiHV (1–6S), Pb (1–10S), NiMH/Cd (1–16S)
• Display: 2.4" IPS LCD
• Working Temperature: 0 – 40 °C
• Storage Temperature: –20 – 60 °C
• Dimensions: 90.5 × 90.5 × 47 mm
• Weight: 250 g

📦 Package Includes

• 1 × ISDT P10 Dual Channel Charger
• 1 × User Manual
