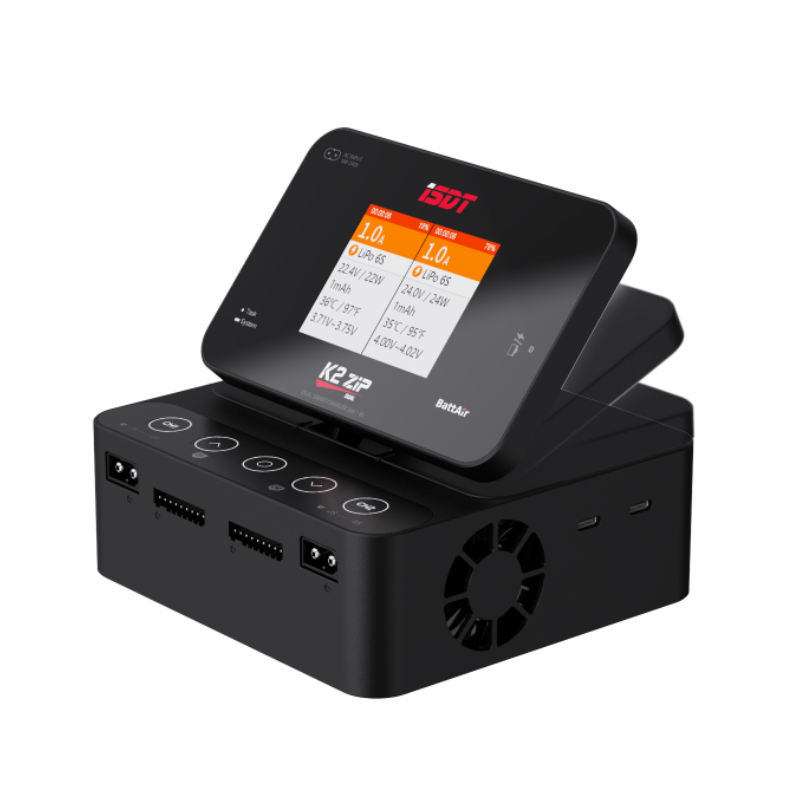

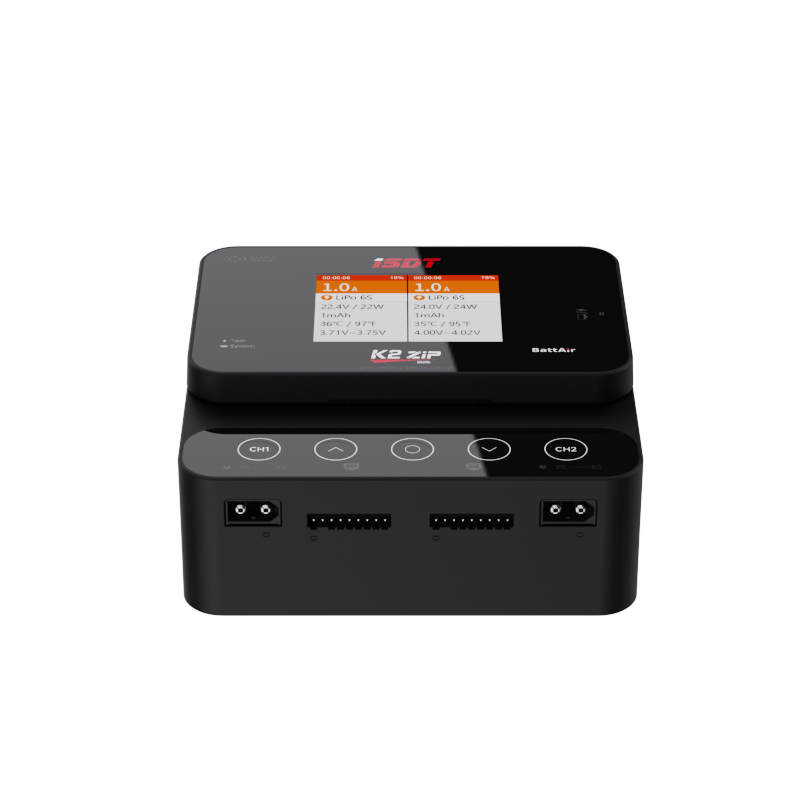

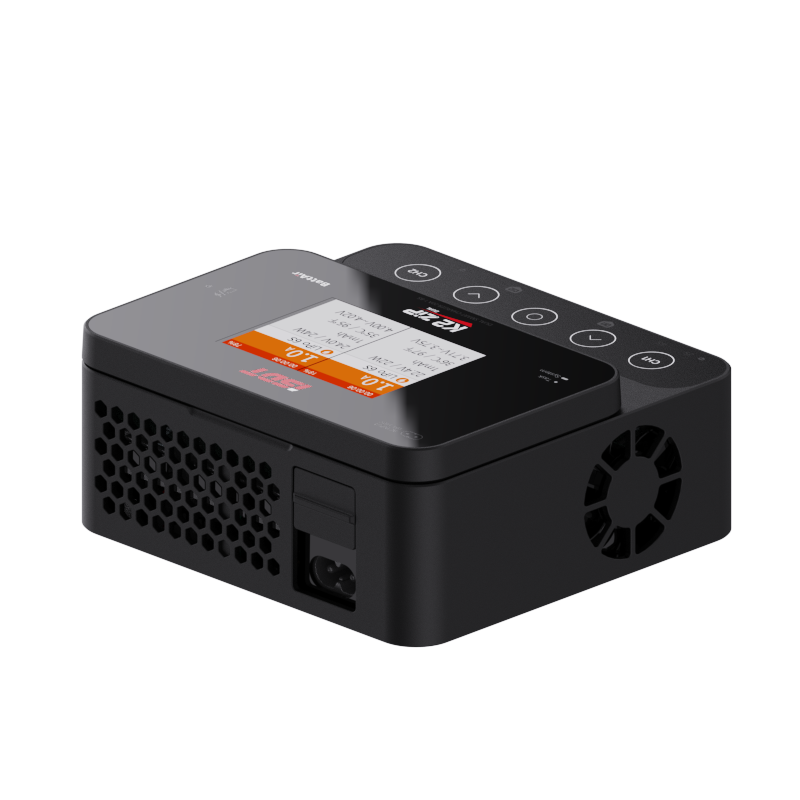

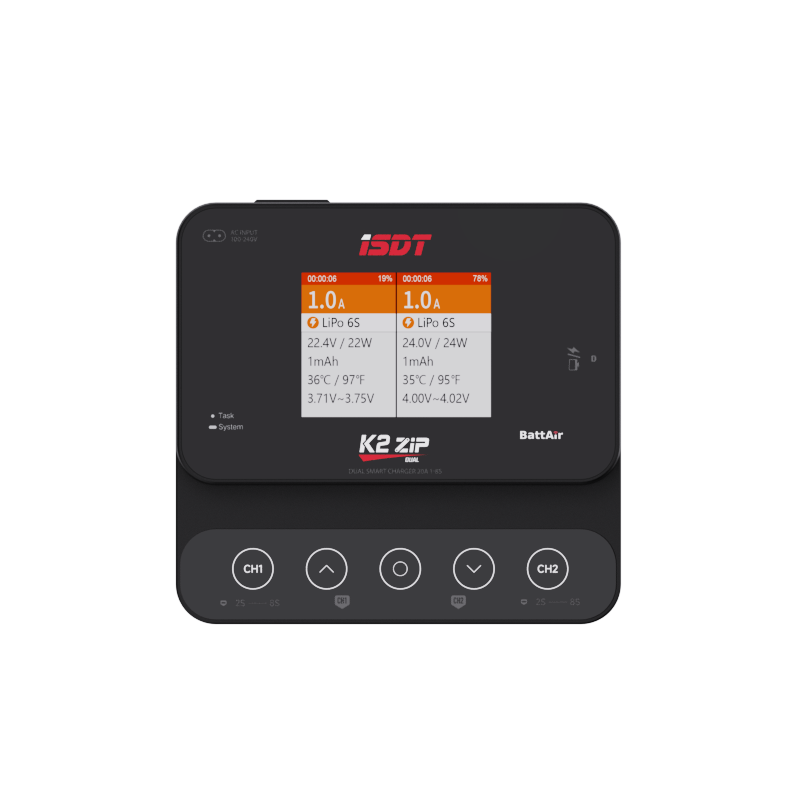

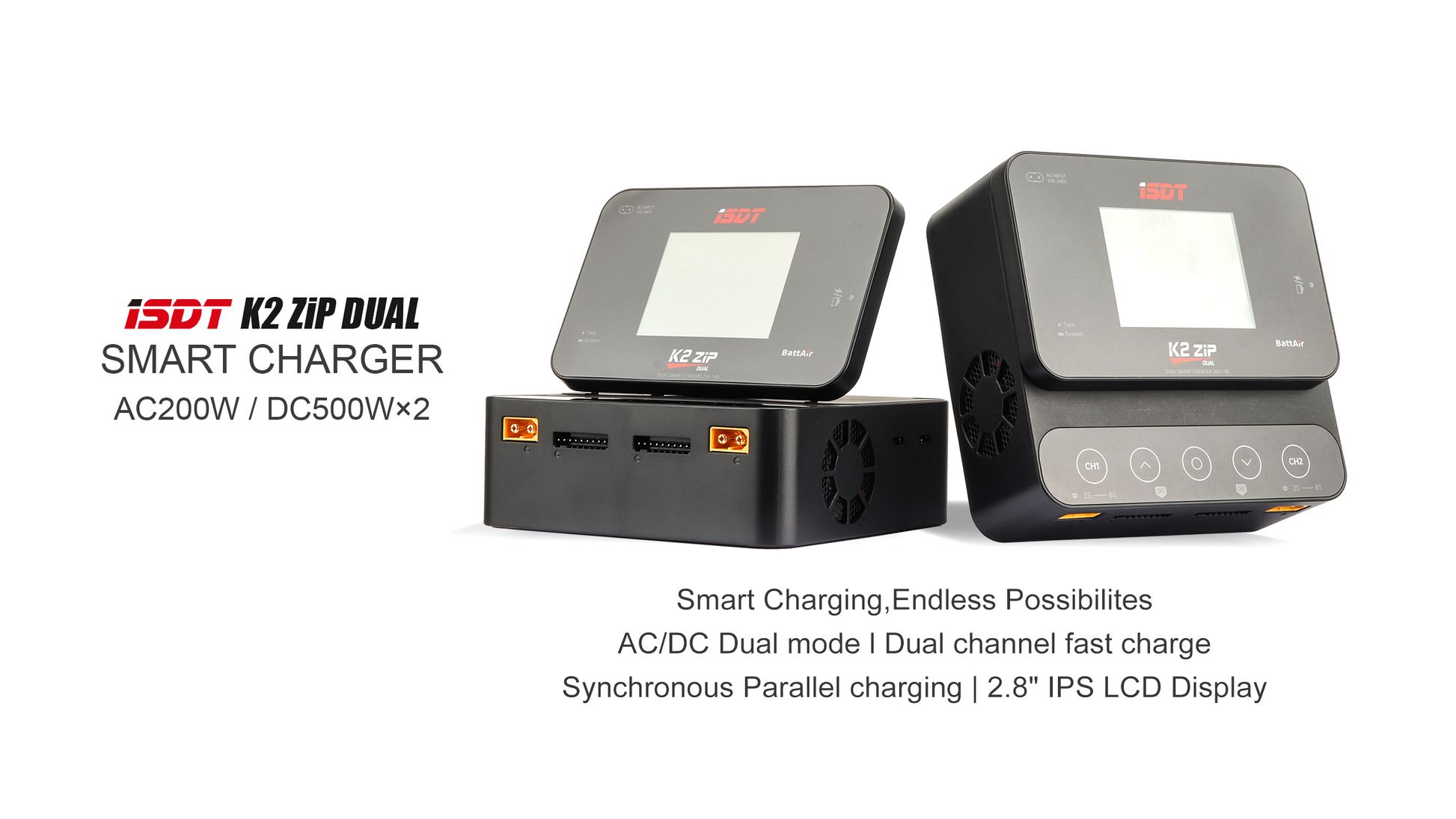

ISDT K2 ZIP Dual Channel Smart Charger

The ISDT K2 ZIP is a powerhouse dual-channel smart charger built for serious FPV pilots, RC racers, and anyone managing large multi-cell LiPo batteries. Supporting up to 8S LiPo charging with 500W per channel (1000W total DC) and 200W on AC, this charger delivers uncompromising flexibility for both home and field use.

With AC/DC dual-mode power, advanced balancing, and intuitive control via ISDT’s signature interface, the K2 ZIP is your all-in-one charging hub for everything from 1S whoop packs (with adapter) to 8S high-performance LiPos. Dual USB-C PD outputs add even more utility, letting you charge your FPV gear or devices simultaneously.

✨ Features

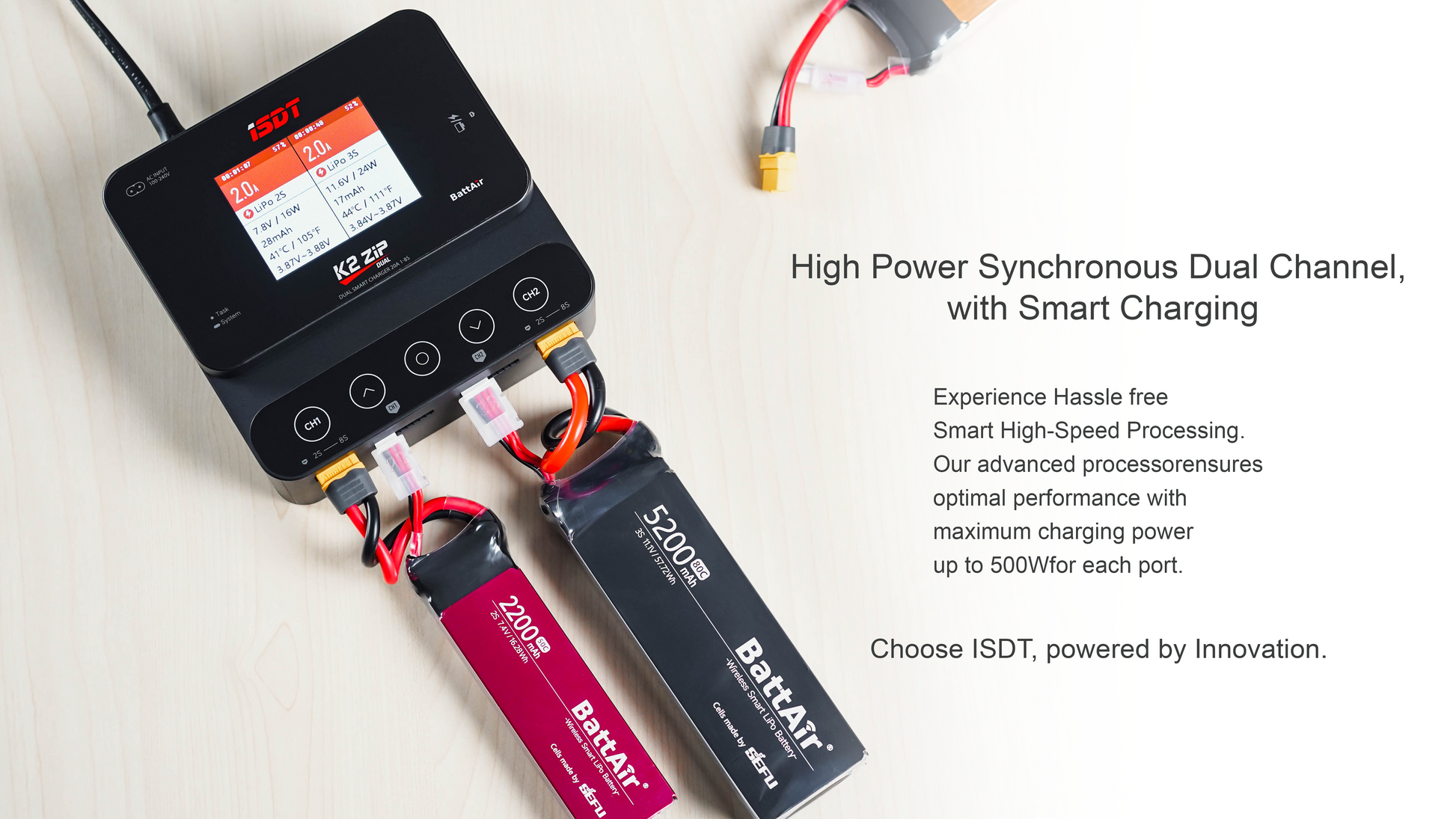

✅ Dual-Channel Intelligent Charging
Charge two batteries independently or in sync — up to 20A per port or 30A when paralleled. Manage multiple high-capacity LiPos at once with ultra-fast balancing.

✅ AC/DC Power Flexibility
Switch seamlessly between AC 200W and DC 1000W total power. Ideal for home charging stations or high-demand field charging setups.

✅ Supports Up to 8S LiPo Batteries
Perfect for large-scale FPV drones, RC cars, or aircraft — safely and efficiently handles up to 8-cell LiPo or 7S LiHV/ULiHV configurations.

✅ Parallel Charging Mode
Combine both channels to achieve 800W/30A of parallel charging output for maximum speed and efficiency.

✅ Smart Safety System
Includes automatic detection for battery type, abnormal voltage alarms, and string configuration error alerts for maximum protection.

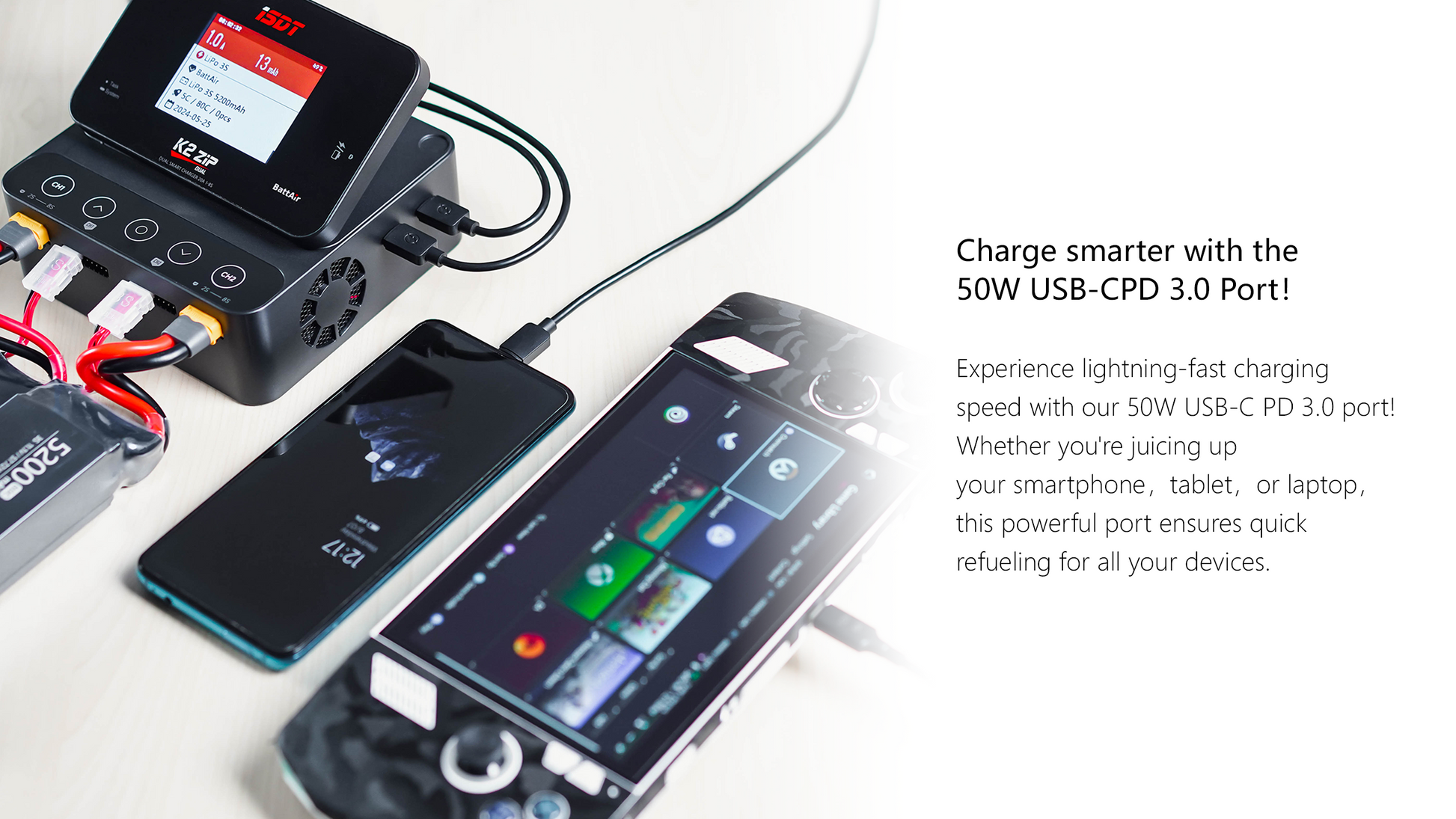

✅ Dual USB-C 65W Outputs
Charge or power devices like FPV goggles, GoPros, and transmitters via two PD 65W USB-C ports — a rare feature among high-power chargers.

✅ Compact and Portable Design
Despite its 1000W output, the K2 ZIP’s aluminum body and efficient internal cooling system keep it sleek, cool, and quiet.

⚙️ Specifications

• Input Voltage: AC 100–240V / DC 10–34V
• Max Input Current: 35A (DC)
• Output Voltage Range: DC 1–34V
• Charging Current: 0.2–20A × 2
• Discharge Current: 0.2–1.5A × 2
• Balance Current: 1.5A/cell (max)
• Max Charging Power: AC 200W / DC 500W × 2
• Max Discharge Power: 15W × 2
• Parallel Charge Power/Current: 800W / 30A
• Parallel Discharge Power/Current: 30W / 3A
• Supported Battery Types:
• LiFe / Li-Ion / LiPo 1–8S
• LiHV / ULiHV 1–7S
• Pb 1–14S
• NiMH / NiCd 1–18S
• USB-C Outputs: 2 × PD 65W
• Operating Temperature: 0–40°C
• Storage Temperature: –20–60°C
• Dimensions: 135 × 126 × 57.7 mm
• Weight: 776 g

📦 Package Includes

• 1 × ISDT K2 ZIP Dual Channel Smart Charger
• 1 × AC Power Cable
• 1 × User Manual
