ISDT 608PD Smart Pocket Charger

Description:
Compact, powerful, and smart — the ISDT 608PD is the new generation of portable LiPo chargers built for modern FPV pilots. With up to 240W DC or 140W USB-C PD output, it handles everything from 1S whoops (with charging board) to 6S racing quads with ease. Its intelligent app connectivity, IPS display, and advanced cooling design make it the ultimate on-the-go charging solution.

Whether you’re charging at the field or your bench, the 608PD delivers the perfect balance of performance, portability, and safety.

✨ Features

✅ High-Power Compact Design
DC 240 W / 10 A max output or USB-C PD 140 W / 5 A, delivering serious power in your pocket.

✅ Smart Charging via App
Fully intelligent battery management through mobile connection — monitor voltage, current, and status in real time.

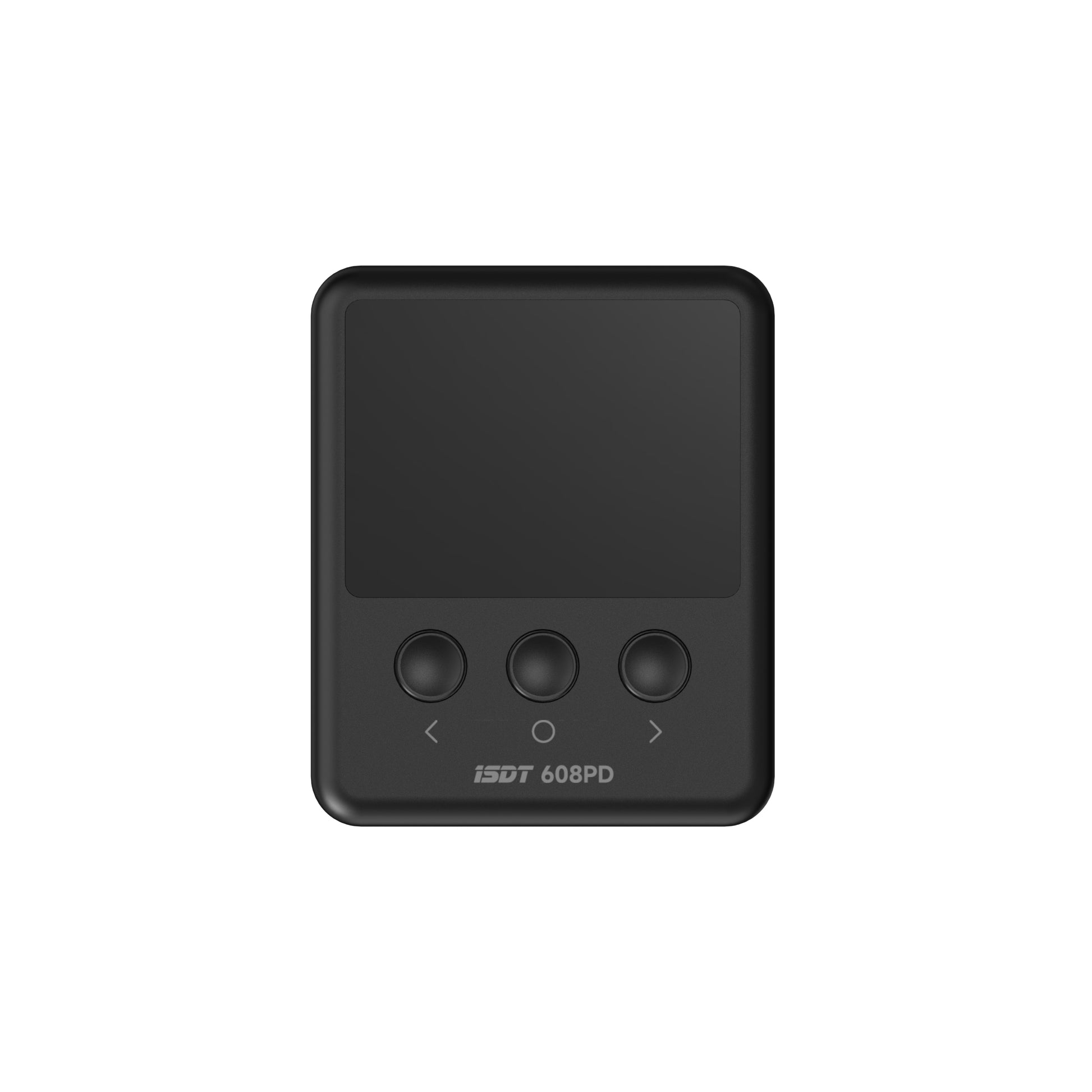

✅ 1.5” IPS Display
Crisp color screen with 178° viewing angle and automatic brightness adjustment — clear visibility even in sunlight.

✅ Advanced Cooling System
Precision-engineered aluminum fins, silicon heat pad, and cross-flow fan ensure efficient heat dissipation.

✅ Universal Battery Support
Charges and discharges LiFe, LiPo, LiHV (4.35 V ~ 4.50 V) 1–6S / Pb 1–12S / NiMH 1–16S packs.

✅ Safety Alarms & Intelligent Protection
Built-in voltage, series-error, and temperature protection with audible alerts.

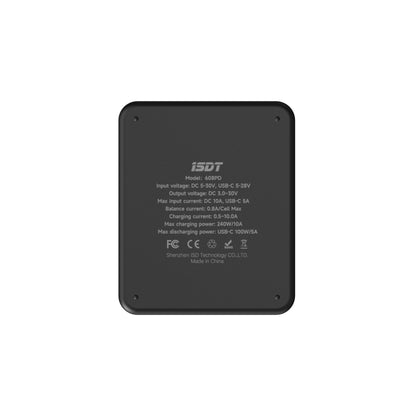

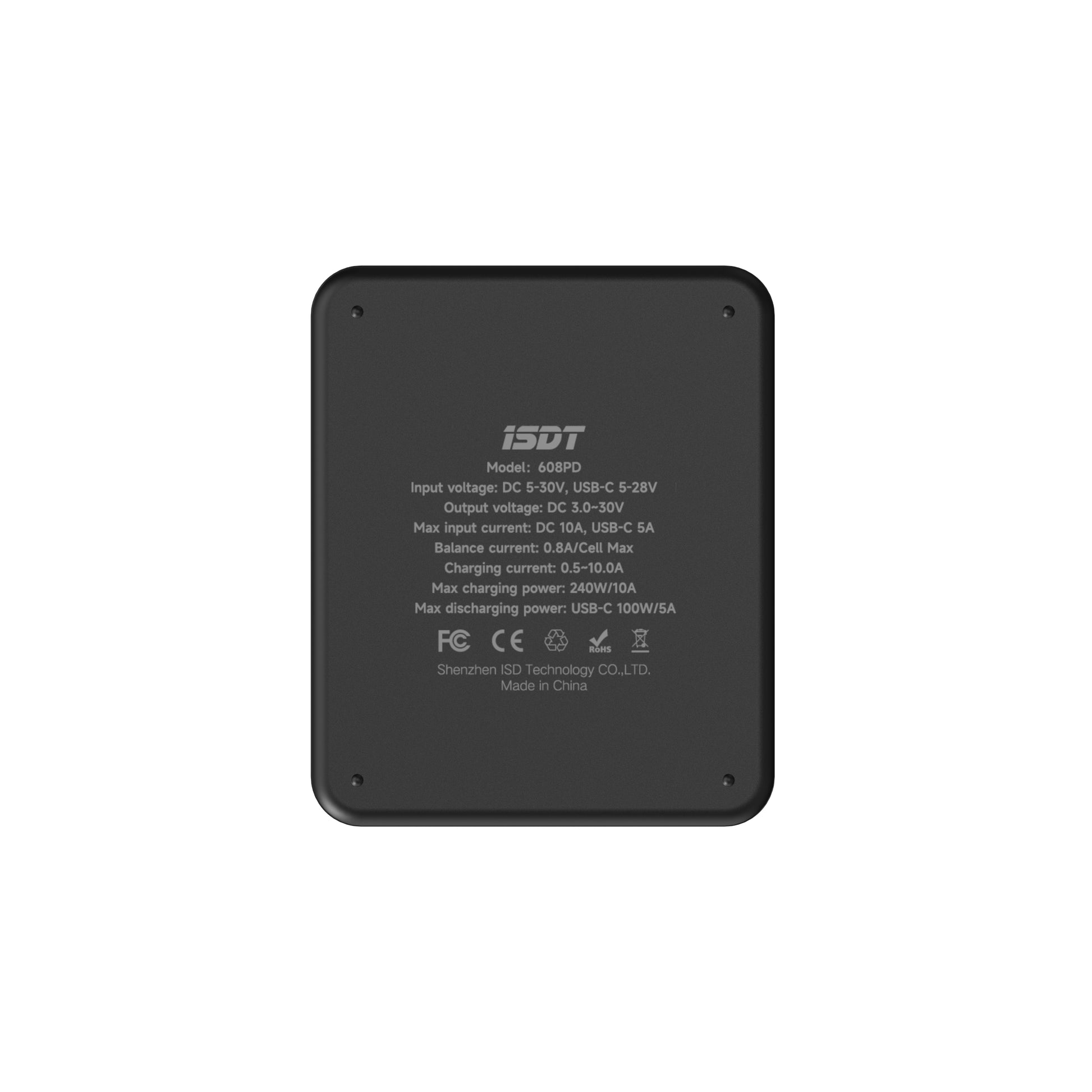

⚙️ Specifications

• Input Voltage: DC 5–30 V / USB-C 5–28 V
• Max Input Current: DC 10 A / USB-C 5 A
• Output Voltage: 3.0–30 V
• Max Charge Power: 240 W @ 10 A (DC) / 140 W @ 5 A (USB-C)
• Max Discharge Power: 100 W @ 5 A (USB-C)
• Balance Current: 0.8 A per cell (max)
• Supported Batteries: LiFe, LiPo, LiHV (1–6 S) / Pb (1–12 S) / NiMH (1–16 S)
• Dimensions: 72.5 × 60 × 26.6 mm
• Weight: 85 g (±10%)
• Operating Temp: 0 – 40 °C
• Storage Temp: -20 – 60 °C

📦 Package Includes

1 × ISDT 608PD Smart Charger
1 × USB-C Cable
1 × User Manual
