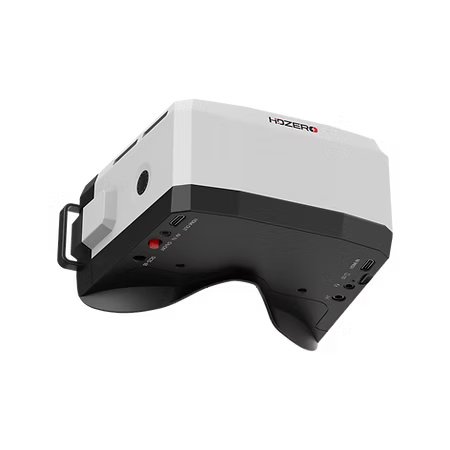

HDZero BoxPro+ FPV Goggles – Dual Digital & Analog, WiFi Streaming + ELRS Integration

Overview

The HDZero BoxPro+ is the ultimate all-in-one FPV goggle — designed for pilots who want digital clarity, analog compatibility, and next-level connectivity. Featuring a 100 Hz, 1800 nits LCD, HDZero + analog dual support, and built-in WiFi video streaming, the BoxPro+ delivers flagship performance without the flagship price.

With its ELRS backpack integration, you can wirelessly sync channels, trigger DVR recording, and enable head tracking directly through your ExpressLRS radio. Whether flying digital HDZero or analog whoops, this goggle bridges both worlds seamlessly.

Key Features

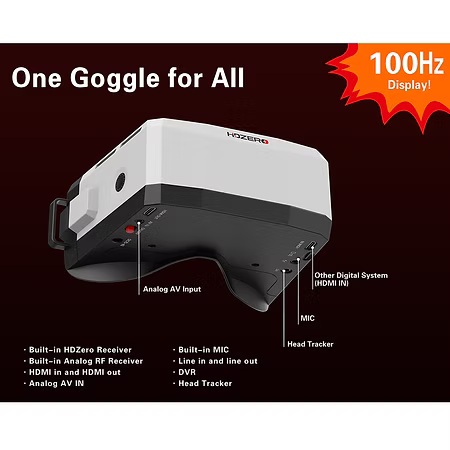

• Triple Video Support: HDZero Digital, Analog, and HDMI input/output.

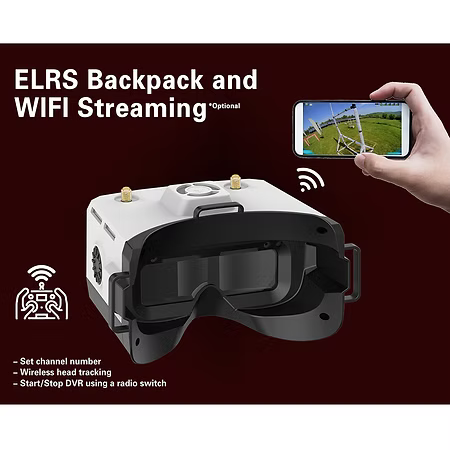

• WiFi Video Streaming: Broadcast live to phone, tablet, or PC via VLC or FPV Mate app.
• ELRS Backpack Integration: Wireless channel sync, DVR control, and head tracking via ExpressLRS.

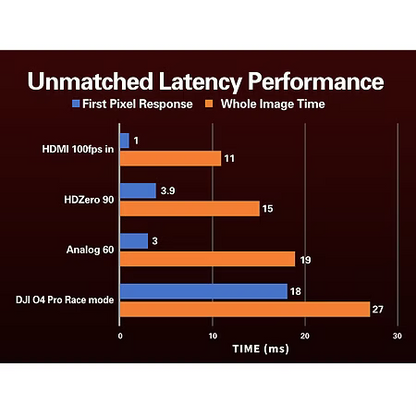

• Ultra-Low Latency: 1 ms HDMI, 3 ms Analog, 4 ms HDZero.

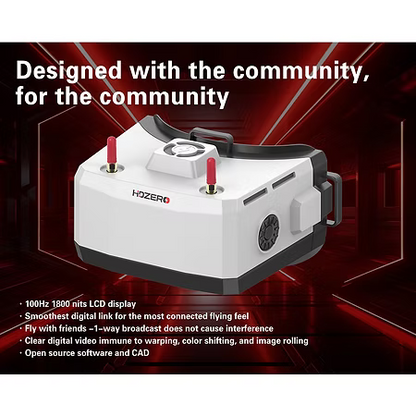

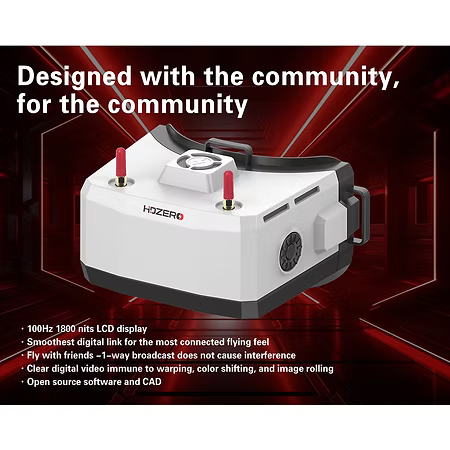

• 100 Hz / 1800 nits Display: Bright, smooth, sunlight-readable LCD.
• Wide 56° FOV: Crisp, immersive viewing.

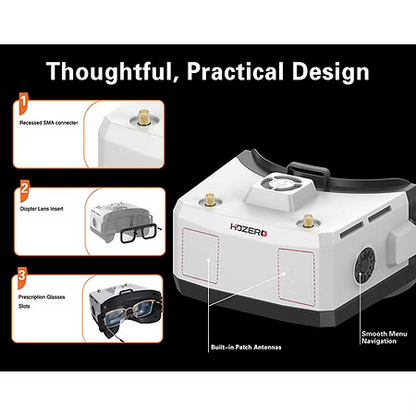

• Integrated 4-Antenna System: 2 inbuilt high-gain patch antennas + 2 SMA linears included.
• Advanced DVR: Built-in H.265 recorder for HDZero, Analog, and HDMI sources.
• Multiple Resolutions: 720p @ 60/90/100 Hz and 1080p @ 60 Hz support.
• Glasses-Friendly Design: Optional diopter lens mount.
• Open-Source Linux Platform: Customizable firmware and community-driven updates.
• Wide Voltage Input: 2S–6S via XT60 connector (battery not included).

Included in Box

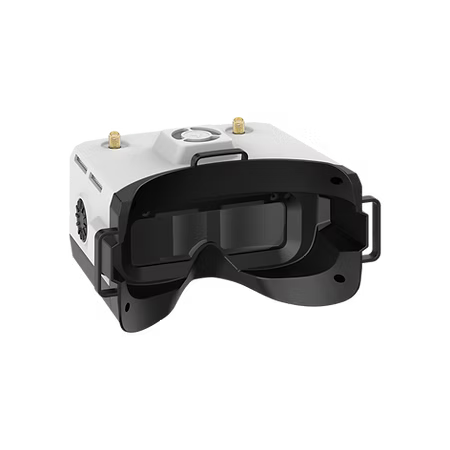

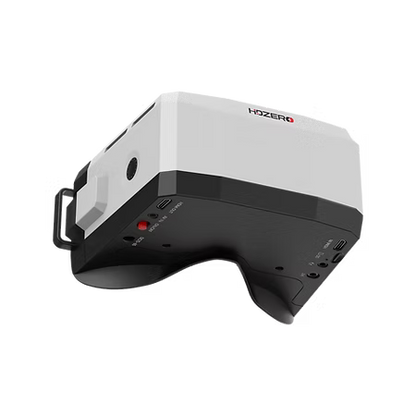

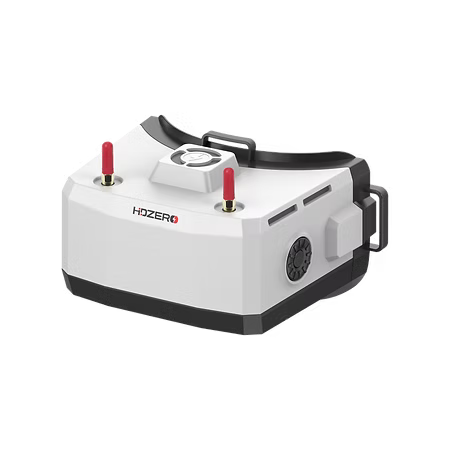

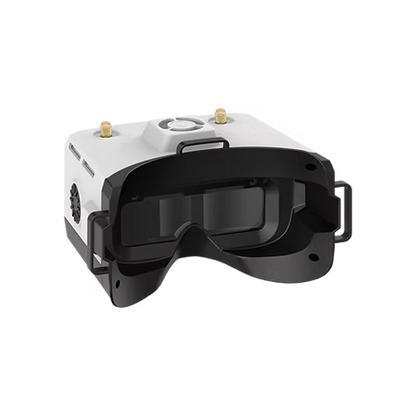

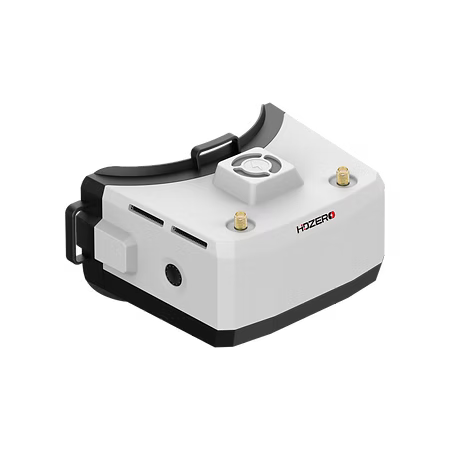

• HDZero BoxPro+ Goggle
• 2 × 5.8 GHz SMA Antennas (plus 2 inbuilt patch antennas)
• Foam Face Pad
• Adjustable Head Strap with Battery Pocket
• 1200 mm XT60 Power Cable
• Canvas Carry Bag
• Lens Cloth

Compatibility

• HDZero Digital VTX Systems

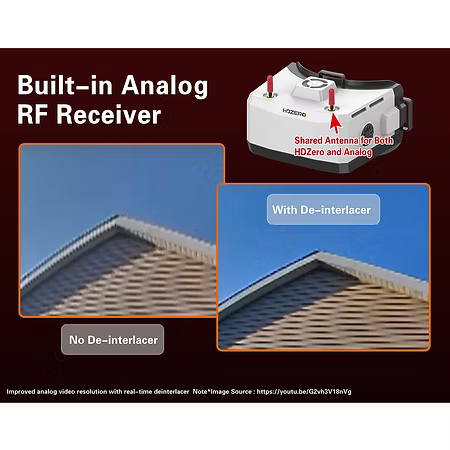

• Analog Cameras and Transmitters
• HDMI Devices (Drone Simulators, PCs, Monitors)
• ExpressLRS Radios (Backpack Sync Features)

Why Choose BoxPro+

• Full Digital + Analog Flexibility – fly any drone with one goggle.
• WiFi & ELRS Integration – true next-gen connectivity.
• Open Firmware Platform – customizable and future-proof.
• Professional-grade Performance – at a mid-range price.
