HDZero AIO5 Digital F4 FC + ELRS + 25/200mW VTX (1S AIO)

Overview

The HDZero AIO5 is the world’s first digital all-in-one flight controller designed for 65mm whoops and other 1S micro drones. It integrates an F4 FC, a 4-in-1 ESC, an HDZero digital VTX, and an onboard ExpressLRS 2.4GHz receiver—all on a single compact board.

With a reinforced single-board design, improved minimum voltage (2.5V), and a powerful 5V/1A BEC, the AIO5 delivers unmatched clarity and reliability for ultralight digital whoops. Developed in collaboration between Happymodel and HDZero, this board enables sub-20g bind-and-fly digital builds with crisp HDZero video.

Key Features

• Fully integrated F4 FC, ESC, ELRS RX, and HDZero 25/200mW VTX
• Operates down to 2.5V — video stays up even as power sags
• Built-in SPI ExpressLRS 2.4GHz receiver (25–500 Hz packet rates)
• DSHOT600-ready 5A BLHeli_S ESC (6A peak for 3 s)
• Compact 28.5×28.5 mm board with 25.5×25.5 mm mounting
• Includes ultra-light linear antenna, A30 power lead, screws, and grommets
• Compatible with all major 65 mm whoop frames

Specifications

• Flight Controller MCU: STM32F411 (100 MHz, 512 KB Flash)
• Gyro: BMI270
• ESC MCU: EFM8BB21
• ESC Firmware: O_H_5_48_V0.19.2.HEX
• Current Handling: 5 A continuous / 6 A peak (3 s)
• Protocol: DSHOT600
• VTX Output Power: 25 mW / 200 mW
• VTX Channels: R1–R8, F2/F4, L1–L8
• BEC Output: 5 V @ 1 A
• Receiver: Integrated SPI ExpressLRS 2.4 GHz
• Power Input: 1S LiPo (2.5 V – 4.35 V)
• Dimensions: 28.5 × 28.5 mm (25.5 mm mount)
• Weight: 6.3 g (with motor plugs)

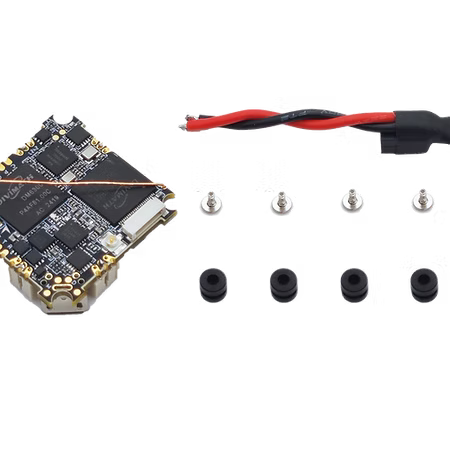

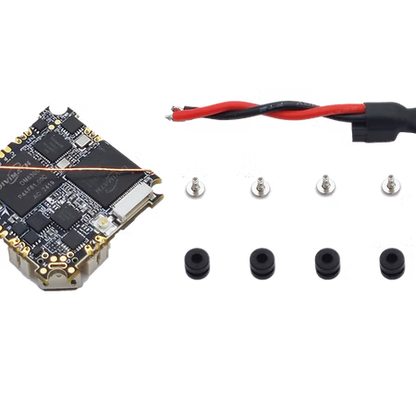

In the Box

• 1 × HDZero AIO5 board
• 1 × A30 angled power cable
• 1 × Linear antenna
• 4 × Mounting screws
• 4 × Rubber grommets
