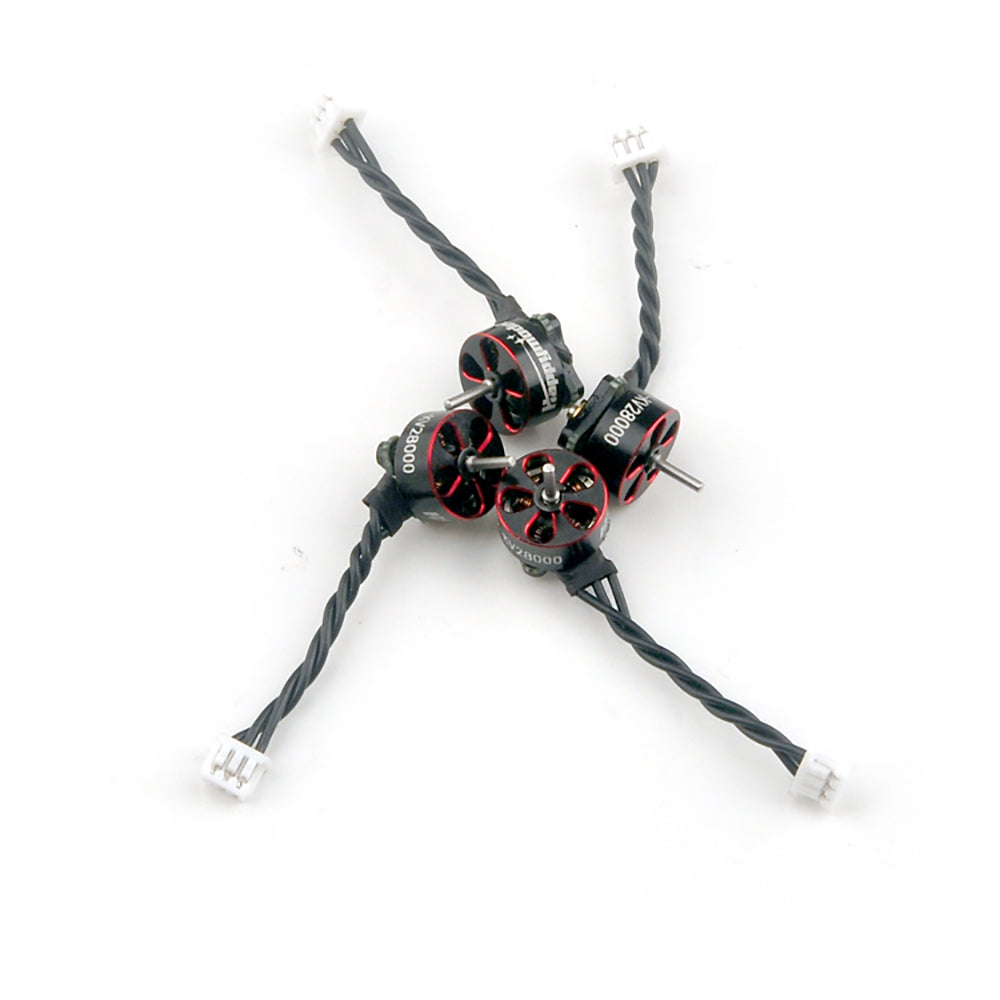

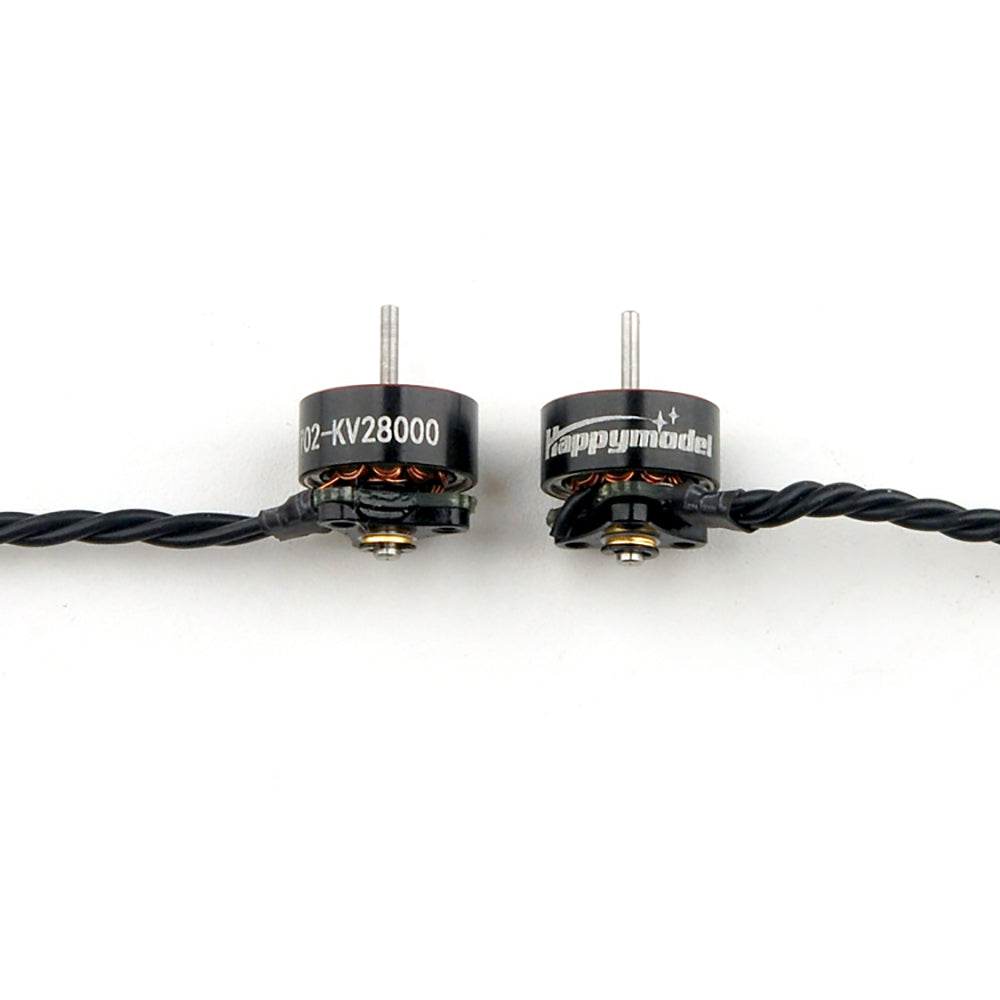

Happymodel SE0702 KV28000 Brushless Motor for Mobula6 2024 / ECO

The Happymodel SE0702 KV28000 is the ultimate lightweight upgrade or replacement motor for Mobula6 2024 and Mobula6 ECO builds. Weighing only 1.5g, this is one of the lightest brushless motors available — delivering aggressive performance with minimal weight for elite indoor FPV racing and freestyle.

Key Features

• High KV 28000 rating for maximum thrust and acceleration
• Featherweight at just 1.5g — ideal for extreme weight builds
• Optimized for 1S brushless FPV whoops like Mobula6 2024 / ECO
• Durable and crash-resistant with high-efficiency stator design
• Tested for balanced output with 31mm tri-blade props

Specifications

• Model: SE0702
• KV: 28000KV
• Configuration: 9N12P
• Stator: 7mm diameter × 2mm length
• Shaft Diameter: 1.0mm

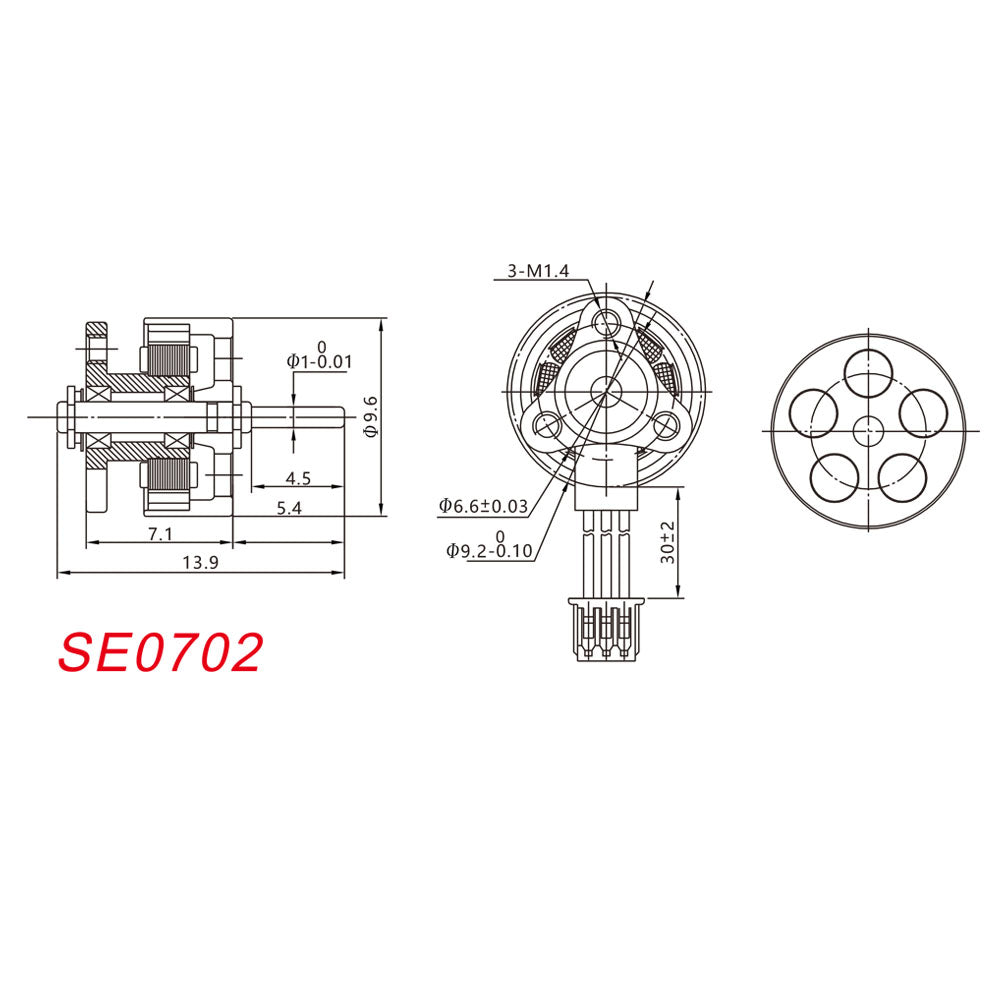

• Dimensions: Φ9.5mm × 14mm

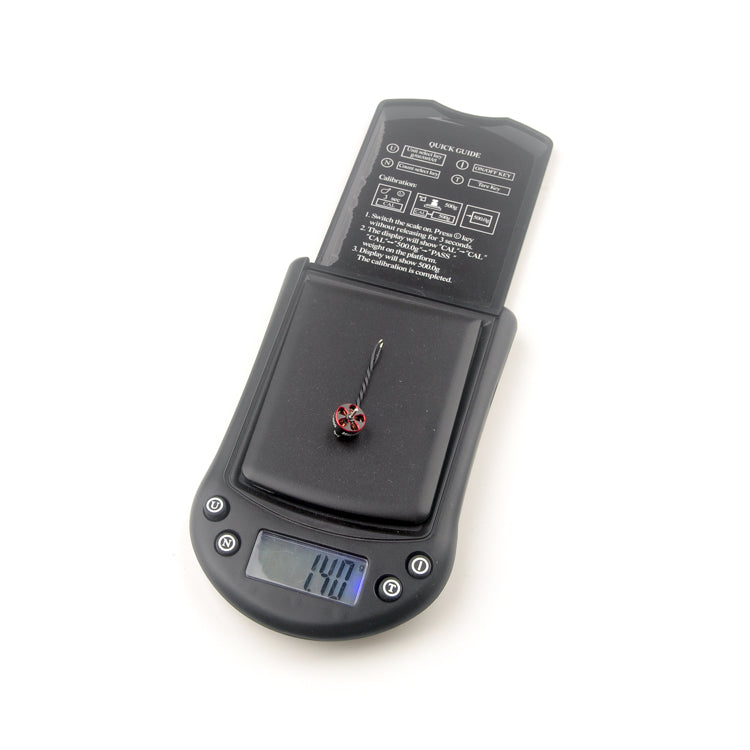

• Weight: 1.5g
• Input Voltage: 1S LiPo
• Recommended Props: 31mm tri-blade (e.g., Gemfan 1219)

Performance Benchmarks (KV28000)

• 55960 RPM at 2V (No load)
• 23g thrust @ 3.7V with Gemfan 31mm tri-blade
• Peak efficiency: ~1.7g/W with optimized prop combo

Package Includes

• 1 × SE0702 KV28000 Brushless FPV Motor

Frequently Asked Questions

Is this compatible with Mobula6 2024 and ECO?

Yes. This motor is a direct drop-in replacement for Mobula6 2024 and Mobula6 ECO builds.

Can this be used for freestyle and racing?

Absolutely. Its high KV and low weight make it perfect for aggressive flying styles in tight spaces.

Is soldering required?

This motor does include a connector but can be direct soldered to your flight controller.
