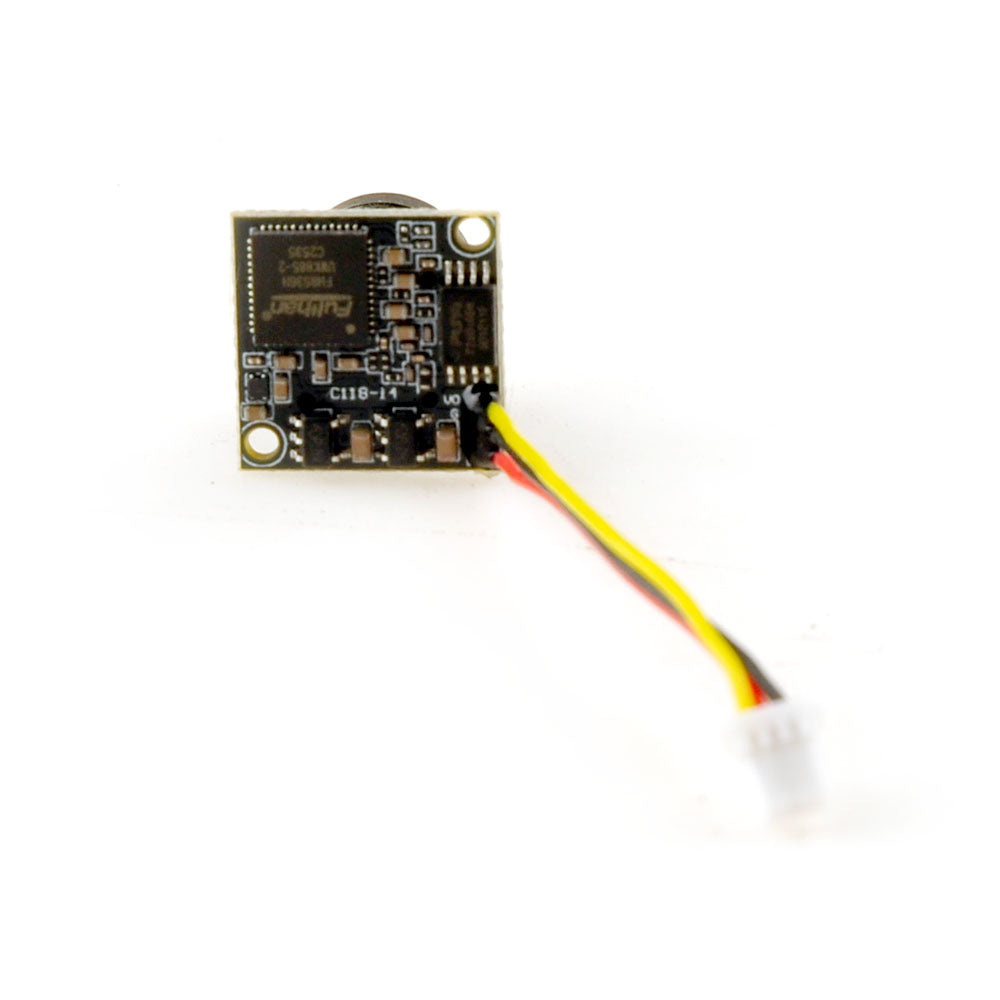

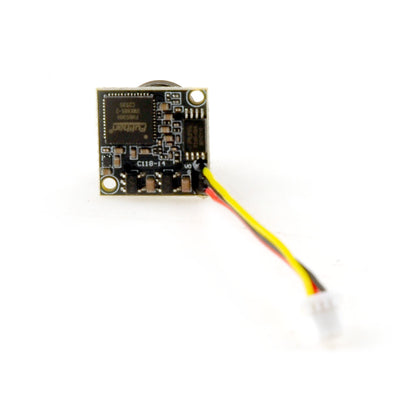

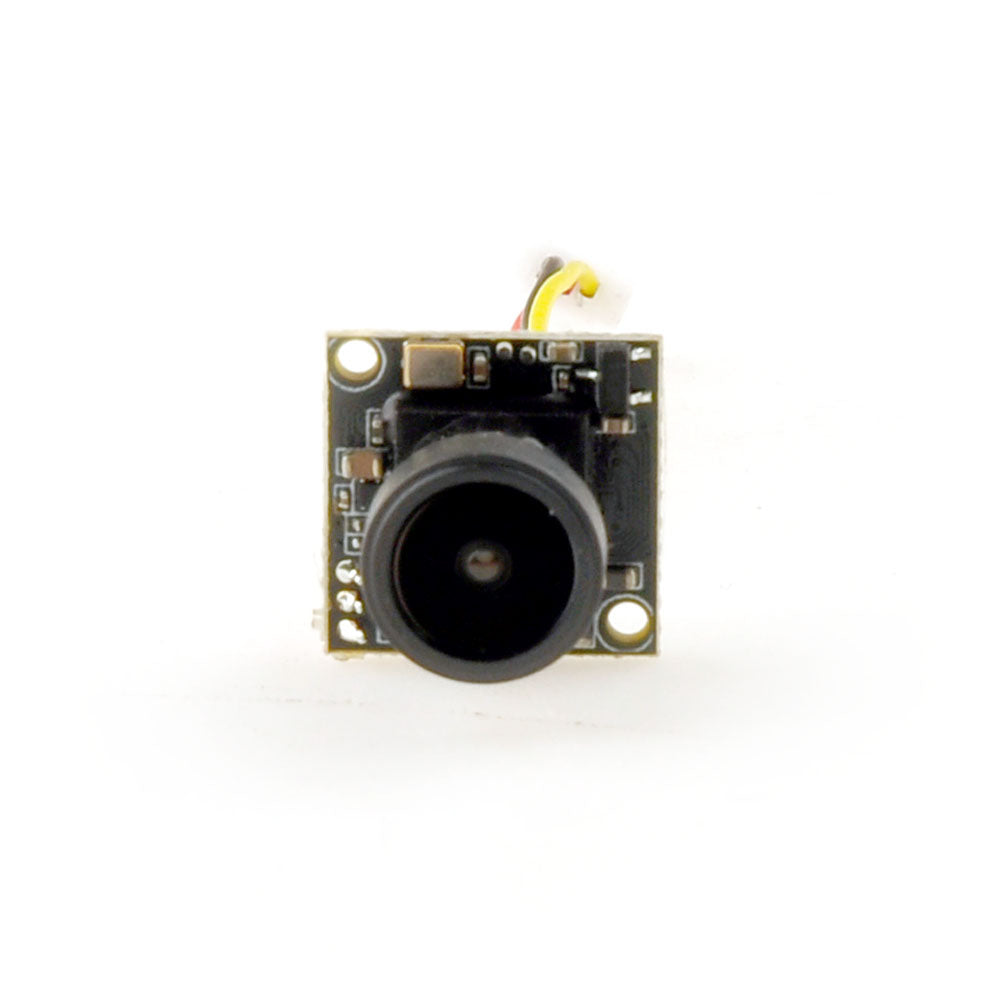

Happymodel Nano5 1200TVL Analog FPV Camera 1 mm for Mobula6 2024 V3

Upgrade or replace your FPV setup with the Happymodel Nano5 1200TVL Analog Camera (1 mm connector), designed for crisp analog video in micro whoop builds like the Mobula6 2024 V3. Lightweight and easy to install, this camera delivers clear video and reliable performance for indoor flying and general FPV use.

Key Features

• 1200TVL horizontal resolution for high‑clarity FPV footage
• 1 mm connector version
• 1/3″ CMOS image sensor with NTSC video output
• Wide 155° field of view (2.1mm M10 lens)
• Auto electronic shutter and automatic gain control (AGC)
• Low light performance — 0.001Lux minimum illumination
• Lightweight ABS housing (approx. 1.57g)

Specifications

• Image Sensor: 1/3″ CMOS
• Resolution: 1200TVL
• Lens: 2.1mm (M10), 155° FOV
• TV System: NTSC
• Signal‑to‑Noise Ratio: >52dB
• Electronic Shutter: Auto
• Automatic Gain Control (AGC): Auto
• Power Supply: DC 3–5.5V
• Current Draw: ~110mA @ 5V
• Housing: ABS

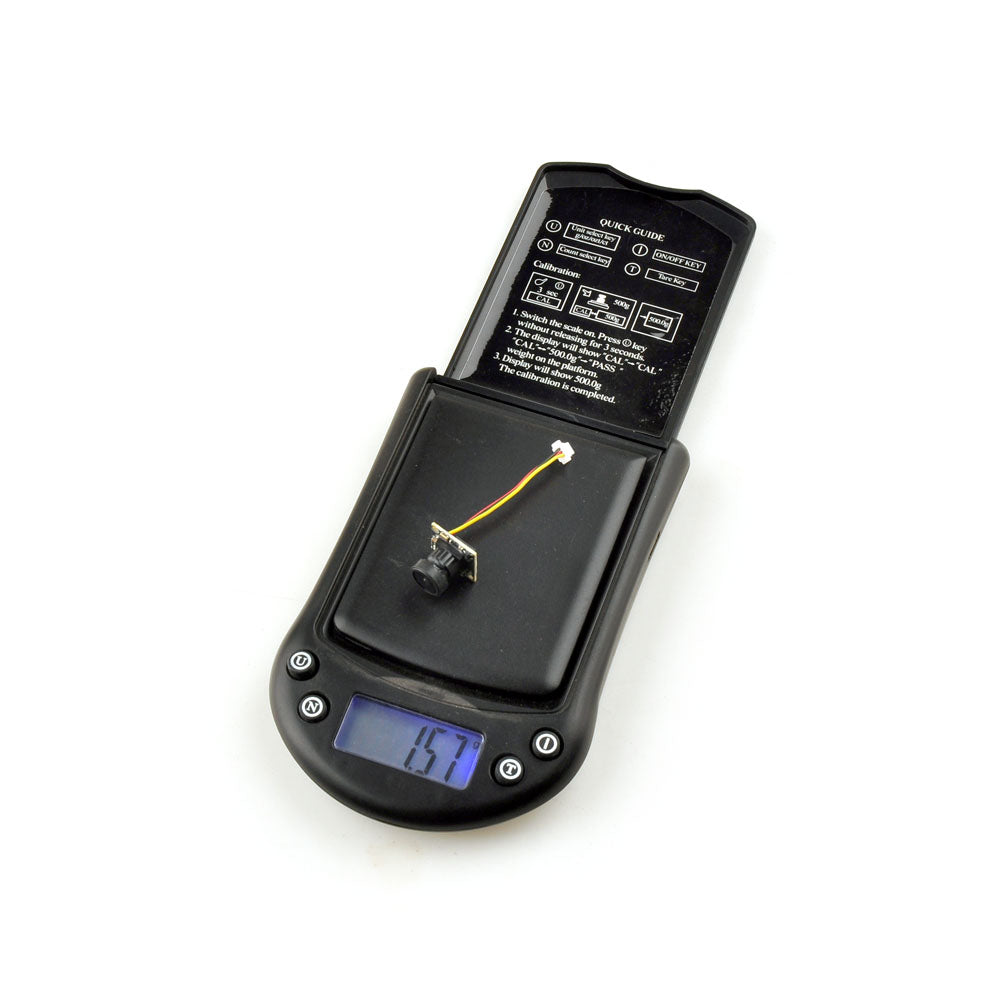

• Net Weight: ~1.57 g (1 mm plug version) (1.49 g Without plug)
• Connector: 1 mm plug

Compatibility

Designed to work with Mobula6 2024 and other mini FPV whoops that accept a 1 mm plug FPV camera.

Frequently Asked Questions

Is this camera compatible with analog FPV systems?

Yes, this is an analog FPV camera with NTSC output suitable for analog video transmitters and goggles.

Can this be used outdoors?

Yes — while ideal for indoor and micro builds, it can also be used outdoors in suitable conditions with protective mounting.

Does it include mounting hardware?

This listing is for the camera only; mounting hardware may be required depending on your frame.
