Happymodel EX0802 19000KV Brushless Motor – UDL Spec Ready (1S, 1.7 g)

Spec class performance in the lightest package.

The Happymodel EX0802 19000KV is a proven choice for Ultra Drone League (UDL) spec racing and other competitive 1S builds. At just 1.7 g, this is one of the lightest 0802 motors available, giving pilots the perfect balance of thrust, efficiency, and agility on tight indoor tracks.

Its Unibell design improves crash durability, while the double E-clip system prevents bell separation — a common failure point in hard racing conditions. Combined with smooth dynamic balancing and high KV output, the EX0802 is built for consistent, repeatable performance round after round.

Why It’s Great for UDL

• Meets spec-class needs — 19000KV pairs perfectly with 1S 450–550 mAh packs.
• Lightest-in-class — only 1.7 g per motor, ideal for strict weight limits.
• Durability for racing — Unibell housing + double E-clip protection.
• Smooth balance — reliable handling in fast cornering and tight tracks.
• Direct solder leads — no connector, ensuring clean, secure installs for spec builds.

Quick Specs

• Model: EX0802
• KV Rating: 19000KV
• Configuration: 9N12P
• Stator Size: 8×2 mm
• Shaft Diameter: 1.0 mm
• Motor Dimensions: Φ10.5 × 14.9 mm

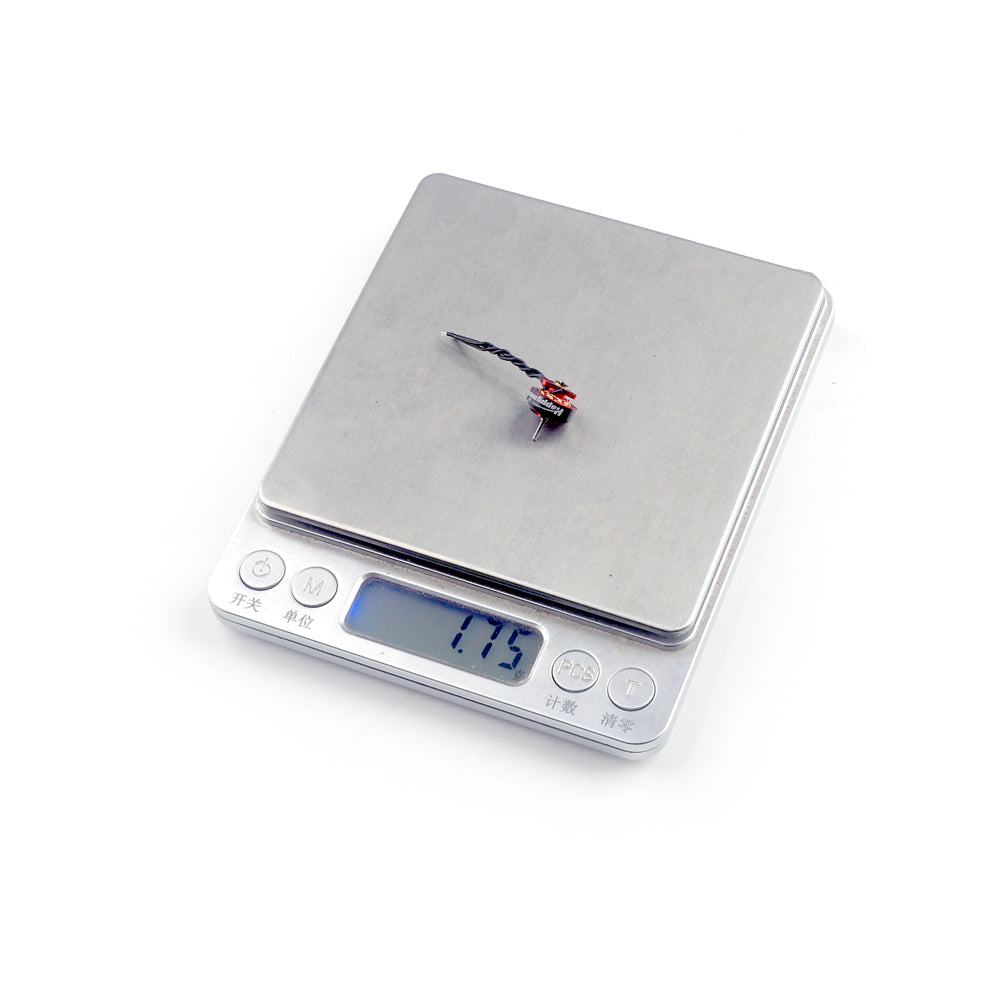

• Weight: 1.7 g
• Wire Length: 30 mm
• Connector: None (direct solder only)
• Battery Support: 1S LiPo/LiHV only

What’s in the Box

• 1 × Happymodel EX0802 19000KV Brushless Motor

In short: The Happymodel EX0802 19000KV is one of the lightest and most reliable motors for UDL spec racing, giving pilots the durability and precision they need to stay competitive without compromising weight or efficiency.
