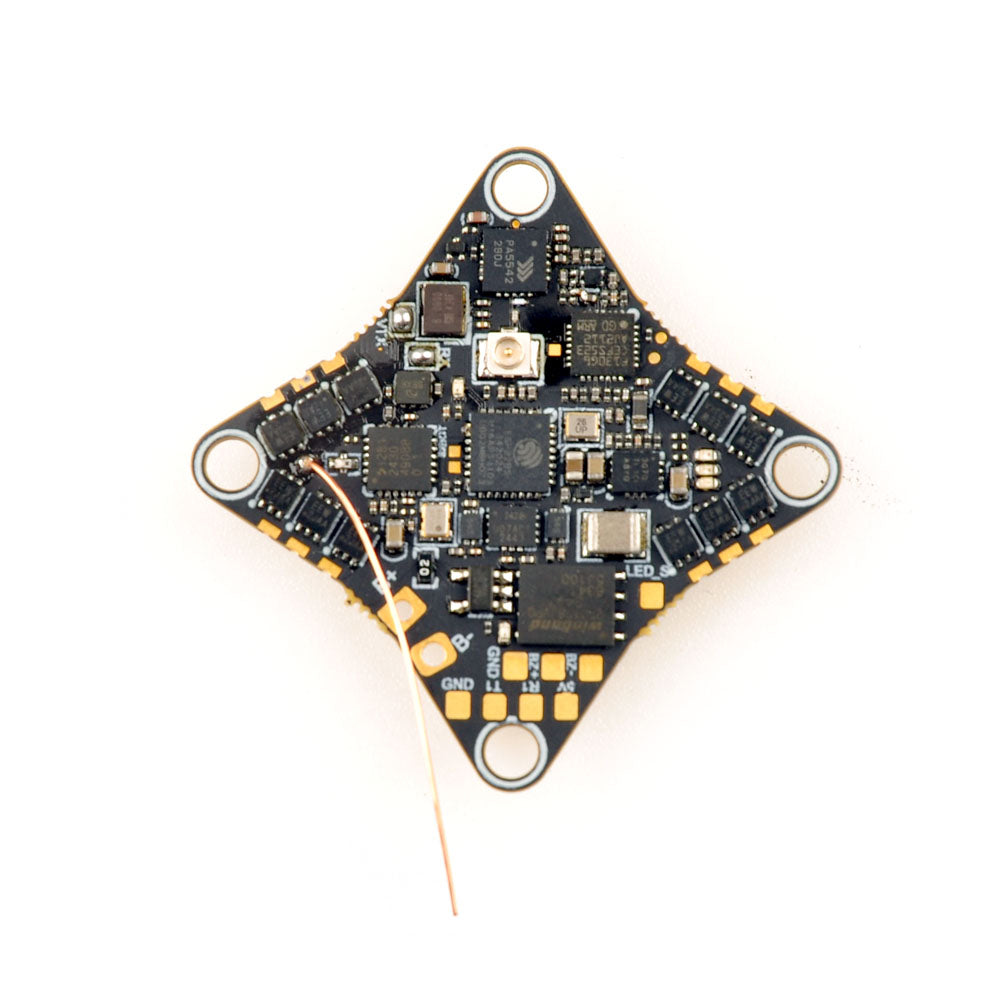

CrazyG473 V1.0 AIO 5‑in‑1 FPV Flight Controller with ELRS & 5.8G OpenVTX

The CrazyG473 V1.0 AIO 5‑in‑1 Flight Controller is the ultimate integrated solution for 65mm 1S micro FPV whoops. Featuring a powerful G473 MCU platform, built‑in UART ExpressLRS receiver, and OpenVTX 5.8GHz video transmitter, this AIO board simplifies wiring and delivers advanced performance for both replacement installs and custom builds.

Key Features

• All‑in‑one flight controller, ESC, receiver, and VTX — clean wiring, less weight
• Built‑in Serial ExpressLRS 2.4GHz — low latency, reliable control link
• OPENVTX 5.8GHz VTX with adjustable power up to 400mW
• ICM42688P gyro and Betaflight 4.6 support for smooth flying dynamics
• SmartAudio 2.1 for remote VTX control from your radio
• Compact and lightweight — ideal for 65mm FPV whoops and micro setups

Flight Controller Specifications

• MCU: STM32G473CEU6
• Gyro: ICM42688P
• Blackbox: 16MB onboard
• BEC: 5V, Max 2A

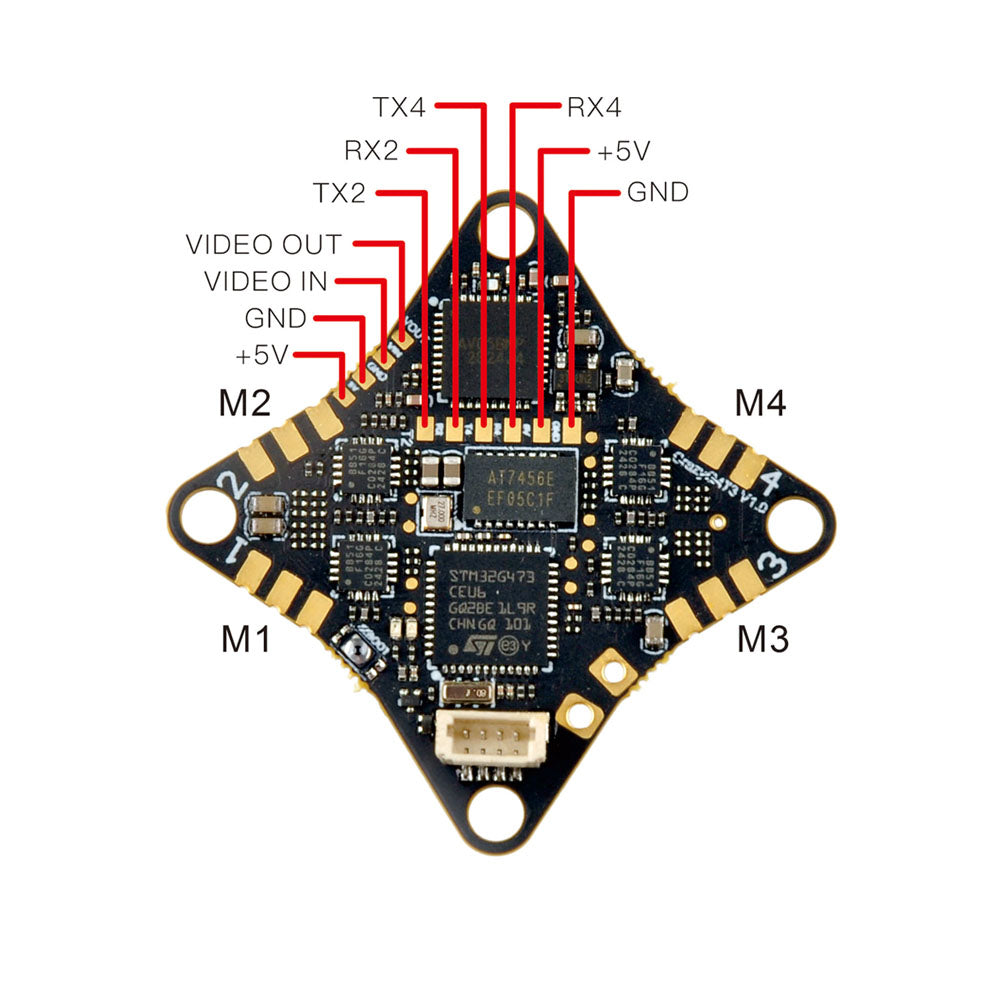

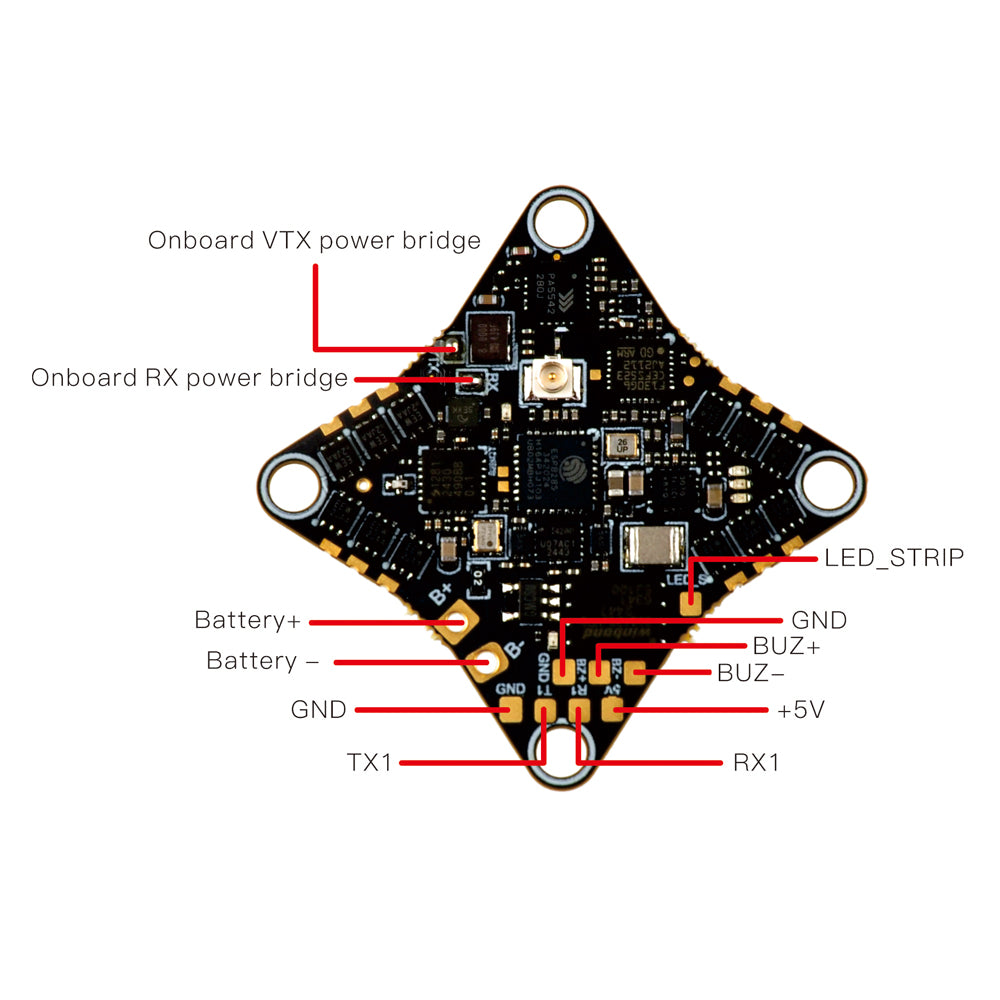

• UART Ports: UART1, UART2, UART3 (RX), UART4 (VTX)
• OSD: BetaFlight AT7456E
• ESC: 5A continuous (6A peak), DShot300/600

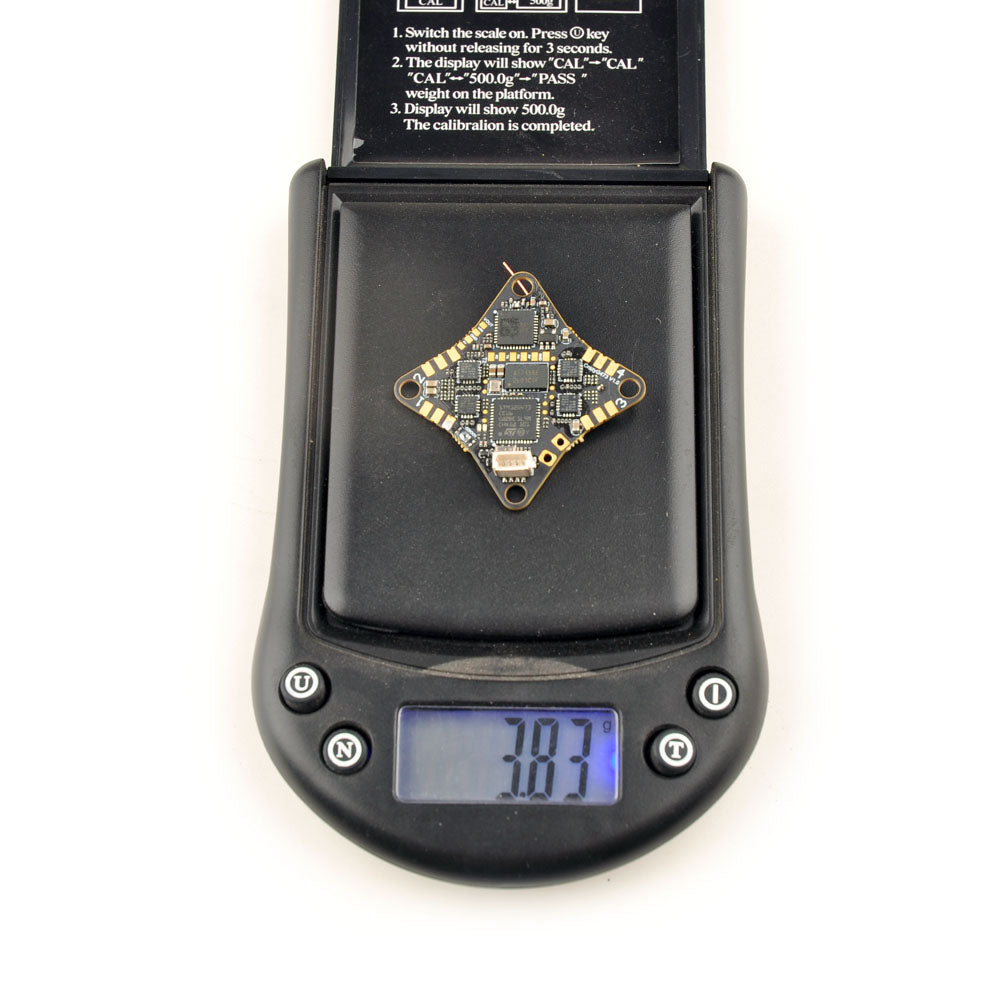

• Weight: 3.8g (without pigtail and antenna)

Receiver & VTX

• Receiver: Serial ExpressLRS 2.4GHz
• Compatible: ExpressLRS V3.x.x TX modules
• Telemetry: Supported
• VTX Output: PIT / 10 / 25 / 100 / 400mW
• Channels: 48 (with Raceband)
• Control: SmartAudio 2.1

Important Tips

• When flashing ELRS Bind phrase, the target for the AIO is EP1/EP2
• We strongly recommend you "Upgrade" to Betaflight version 4.5.3 to fix the intermittent issue of flip over after crash not shutting off after rearming to take off
• Onboard VTX only powers when the battery is plugged.
• VTX output defaults to low power when disarmed — you can change this via SmartAudio.
• Visit the Betaflight configurator and select “Can’t find my USB device” if your controller isn’t recognized initially

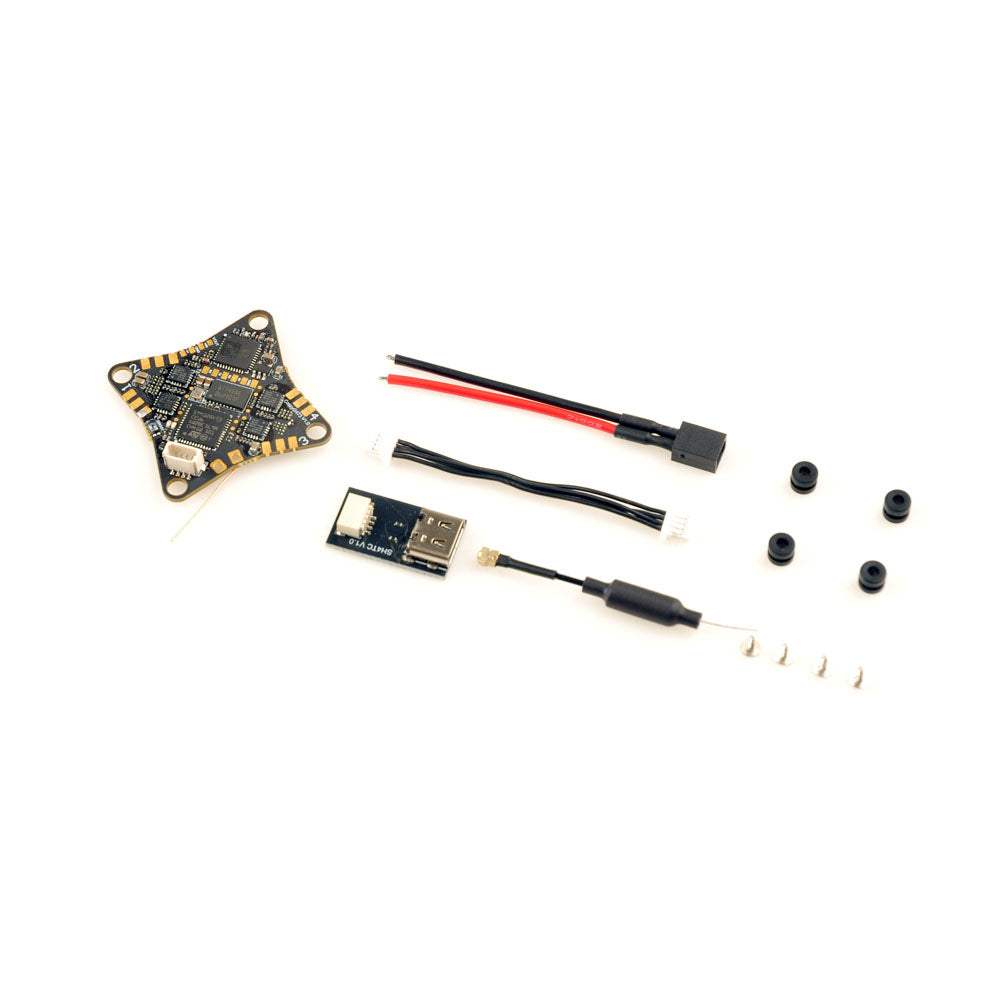

Package Includes

• 1 × CrazyG473 V1.0 AIO 5‑in‑1 FPV Flight Controller

Frequently Asked Questions

Is this controller compatible with Mobula6 2024?

Yes. Designed to replace or upgrade FCs in 65mm 1S whoops like Mobula6 2024 and Mobula6 ECO.

Does the onboard VTX work without arming?

The VTX defaults to very low output when disarmed. You can set your desired VTX power level using SmartAudio.

Can I flash firmware via ExpressLRS?

Yes — this board supports ExpressLRS firmware flashing via WiFi and is fully compatible with ELRS V3.x.x TX modules.
